07-12-2013, 05:49 AM #1
All - Hansebanger77 has stuck a MB six speed transmission in his OM606 beast - From what I have gathered he has not had any issues (touch wood). I plan to do the same.

I believe that all these 6 speed transmissions are built for dual mass flywheels with the centre bearing in the flywheel - so I plan to have a custom flywheel made up to suit a Sachs Racing SRE 765 (BMW M5) pressure plate. Any comments?

The question I have is what is the best Six speed box to use (E220CDi etc)? – highest torque rating so that I know what to purchase!

Also does anyone have any ratio info on these?

Cheers,
Max

W124 om606 HX40 finished and it's a beauty 450bhp/456ft-lbs
maxypriest
07-12-2013, 05:49 AM #1

All - Hansebanger77 has stuck a MB six speed transmission in his OM606 beast - From what I have gathered he has not had any issues (touch wood). I plan to do the same.

I believe that all these 6 speed transmissions are built for dual mass flywheels with the centre bearing in the flywheel - so I plan to have a custom flywheel made up to suit a Sachs Racing SRE 765 (BMW M5) pressure plate. Any comments?

The question I have is what is the best Six speed box to use (E220CDi etc)? – highest torque rating so that I know what to purchase!

Also does anyone have any ratio info on these?

Cheers,
Max


W124 om606 HX40 finished and it's a beauty 450bhp/456ft-lbs

HaavardPYA
GT2559V

189
07-13-2013, 04:21 AM #2
Don't know witch are the strongest ones, but i'm positive that the 220cdi box(716.654) has the bigger outputflange and therefore maybe stronger. I think the 230 kompressor also has the bigger outputflange.
HaavardPYA
07-13-2013, 04:21 AM #2

Don't know witch are the strongest ones, but i'm positive that the 220cdi box(716.654) has the bigger outputflange and therefore maybe stronger. I think the 230 kompressor also has the bigger outputflange.

maxypriest
Holset

287
07-13-2013, 02:01 PM #3
Ok, we'll that's a start!
Thanks!
Max

W124 om606 HX40 finished and it's a beauty 450bhp/456ft-lbs
maxypriest
07-13-2013, 02:01 PM #3

Ok, we'll that's a start!
Thanks!
Max


W124 om606 HX40 finished and it's a beauty 450bhp/456ft-lbs

07-13-2013, 03:54 PM #4
I use also 716.654 but I think all 716.6xx are good option. There are 2 different linkages to shift. I have only 1 linkage for all gears. The other ones hafe some Bowden cable too. Correct me if I'm wrong.
hansebanger77
07-13-2013, 03:54 PM #4

I use also 716.654 but I think all 716.6xx are good option. There are 2 different linkages to shift. I have only 1 linkage for all gears. The other ones hafe some Bowden cable too. Correct me if I'm wrong.

lodin92
Naturally-aspirated

6
07-15-2013, 01:29 PM #5
How did u get your speedometer to work hassebanger?
Is there electric speedometer in 220cdi?
Tobias
lodin92
07-15-2013, 01:29 PM #5

How did u get your speedometer to work hassebanger?
Is there electric speedometer in 220cdi?
Tobias

Grecy
GTA2056V

75
07-15-2013, 06:58 PM #6
If anyone knows the gear ratios for all these different six speeds that would be great too.

Thanks,
-Dan
Grecy
07-15-2013, 06:58 PM #6

If anyone knows the gear ratios for all these different six speeds that would be great too.

Thanks,
-Dan

Shovel
Unregistered


07-17-2013, 11:25 AM #7
(07-15-2013, 06:58 PM)Grecy If anyone knows the gear ratios for all these different six speeds that would be great too.

Thanks,
-Dan

Im not 100% sure but I think all the 716.6xx gearboxes have the following ratios -
1st gear - 5.014
2nd gear - 2.831
3rd gear - 1.789
4th gear - 1.256
5th gear - 1.000
6th gear - 0.828
Reverse - 4.569
Shovel
07-17-2013, 11:25 AM #7

(07-15-2013, 06:58 PM)Grecy If anyone knows the gear ratios for all these different six speeds that would be great too.

Thanks,
-Dan

Im not 100% sure but I think all the 716.6xx gearboxes have the following ratios -
1st gear - 5.014
2nd gear - 2.831
3rd gear - 1.789
4th gear - 1.256
5th gear - 1.000
6th gear - 0.828
Reverse - 4.569

maxypriest
Holset

287
07-17-2013, 12:18 PM #8
(07-17-2013, 11:25 AM)Shovel
(07-15-2013, 06:58 PM)Grecy If anyone knows the gear ratios for all these different six speeds that would be great too.

Thanks,
-Dan

Im not 100% sure but I think all the 716.6xx gearboxes have the following ratios -
1st gear - 5.014
2nd gear - 2.831
3rd gear - 1.789
4th gear - 1.256
5th gear - 1.000
6th gear - 0.828
Reverse - 4.569
That's great!
Thanks!

W124 om606 HX40 finished and it's a beauty 450bhp/456ft-lbs
maxypriest
07-17-2013, 12:18 PM #8

(07-17-2013, 11:25 AM)Shovel
(07-15-2013, 06:58 PM)Grecy If anyone knows the gear ratios for all these different six speeds that would be great too.

Thanks,
-Dan

Im not 100% sure but I think all the 716.6xx gearboxes have the following ratios -
1st gear - 5.014
2nd gear - 2.831
3rd gear - 1.789
4th gear - 1.256
5th gear - 1.000
6th gear - 0.828
Reverse - 4.569
That's great!
Thanks!


W124 om606 HX40 finished and it's a beauty 450bhp/456ft-lbs

HaavardPYA
GT2559V

189
08-06-2013, 01:11 PM #9
I have the one with two linkages. Both linkages needs shortening to mount in the w124 shifter hole, and the hole must be cut bigger. I shortened 7cm to fit the middle of the orginal hole in the w124 tunnel. 10x10cm are perfect hole to make the foamrubber on the shifter to fill the hole. The w203 220 cdi front kardanshaft fits right on the splines on the orginal w124 rear kardanshaft, but needed to be lenghtened 5cm.
I strongly recomend that you buy a box with shifter and rubber flex joints for the kardan, as these are expensive units by them selfes. I didnt, and i wont do that again for sure...!
HaavardPYA
08-06-2013, 01:11 PM #9

I have the one with two linkages. Both linkages needs shortening to mount in the w124 shifter hole, and the hole must be cut bigger. I shortened 7cm to fit the middle of the orginal hole in the w124 tunnel. 10x10cm are perfect hole to make the foamrubber on the shifter to fill the hole. The w203 220 cdi front kardanshaft fits right on the splines on the orginal w124 rear kardanshaft, but needed to be lenghtened 5cm.
I strongly recomend that you buy a box with shifter and rubber flex joints for the kardan, as these are expensive units by them selfes. I didnt, and i wont do that again for sure...!

willbhere4u
Six in a row make her go!

2,507
08-07-2013, 10:01 AM #10
(07-13-2013, 03:54 PM)hansebanger77 I use also 716.654 but I think all 716.6xx are good option. There are 2 different linkages to shift. I have only 1 linkage for all gears. The other ones hafe some Bowden cable too. Correct me if I'm wrong.

I believe the cable is for a reverse lock out if the cable is not moved the shifter is locked out of reverseBig Grin like the old volvos you have to pull up on the shifter or some such thing
This post was last modified: 08-07-2013, 10:03 AM by willbhere4u.

1987 300SDL 6spd manual om606.962 swap project
1985 300td euro 5spd wagon running
willbhere4u
08-07-2013, 10:01 AM #10

(07-13-2013, 03:54 PM)hansebanger77 I use also 716.654 but I think all 716.6xx are good option. There are 2 different linkages to shift. I have only 1 linkage for all gears. The other ones hafe some Bowden cable too. Correct me if I'm wrong.

I believe the cable is for a reverse lock out if the cable is not moved the shifter is locked out of reverseBig Grin like the old volvos you have to pull up on the shifter or some such thing


1987 300SDL 6spd manual om606.962 swap project
1985 300td euro 5spd wagon running

HaavardPYA
GT2559V

189
08-09-2013, 06:41 PM #11
Thats right. But if the cable is not attached, it will only shift from 3-4-3. I`ve triedWink
HaavardPYA
08-09-2013, 06:41 PM #11

Thats right. But if the cable is not attached, it will only shift from 3-4-3. I`ve triedWink

swampmonkey
hx40 super

280
09-22-2013, 10:30 AM #12
(07-13-2013, 03:54 PM)hansebanger77 I use also 716.654 but I think all 716.6xx are good option. There are 2 different linkages to shift. I have only 1 linkage for all gears. The other ones hafe some Bowden cable too. Correct me if I'm wrong.

does the gearbox work?
how much power and torque is the engine putting out?

and thanks for the nice videos on youtube, really enjoy those

---------------------------------
daily driver
w115 240d 72hp 3.07 rearend
w123 om602 turbo 200whp 7.5mm pump fivespeed 3.07 rearend
+ a few more.
mbturbo.com
swampmonkey
09-22-2013, 10:30 AM #12

(07-13-2013, 03:54 PM)hansebanger77 I use also 716.654 but I think all 716.6xx are good option. There are 2 different linkages to shift. I have only 1 linkage for all gears. The other ones hafe some Bowden cable too. Correct me if I'm wrong.

does the gearbox work?
how much power and torque is the engine putting out?

and thanks for the nice videos on youtube, really enjoy those


---------------------------------
daily driver
w115 240d 72hp 3.07 rearend
w123 om602 turbo 200whp 7.5mm pump fivespeed 3.07 rearend
+ a few more.
mbturbo.com

OM616
10mm MW

572
09-22-2013, 11:34 AM #13
If the fabricated adaptor plate is only 1/4 inch thick, I would look into machining down the Stock (cast) adaptor that much so the trans back set is right, unless the input shaft is shorter with this trans, then one may be able to adjust for that as well providing there is enough of the cast plate left for strength.

Nice job!!
OM616
09-22-2013, 11:34 AM #13

If the fabricated adaptor plate is only 1/4 inch thick, I would look into machining down the Stock (cast) adaptor that much so the trans back set is right, unless the input shaft is shorter with this trans, then one may be able to adjust for that as well providing there is enough of the cast plate left for strength.

Nice job!!

swampmonkey
hx40 super

280
10-10-2013, 03:33 PM #14
my detective work, resulted in:
near al of the CDI gearboxes are called SG-S370/6 where the 370 stands for 370nm,
wont bet any money on this yet thou...

anyone more than Hansebanger that has used one? reliable and takes a beating?

if nothing else works it seems the best is the 530d 6speed ZF gearbox..
This post was last modified: 10-19-2013, 06:28 PM by swampmonkey.

---------------------------------
daily driver
w115 240d 72hp 3.07 rearend
w123 om602 turbo 200whp 7.5mm pump fivespeed 3.07 rearend
+ a few more.
mbturbo.com
swampmonkey
10-10-2013, 03:33 PM #14

my detective work, resulted in:
near al of the CDI gearboxes are called SG-S370/6 where the 370 stands for 370nm,
wont bet any money on this yet thou...

anyone more than Hansebanger that has used one? reliable and takes a beating?

if nothing else works it seems the best is the 530d 6speed ZF gearbox..


---------------------------------
daily driver
w115 240d 72hp 3.07 rearend
w123 om602 turbo 200whp 7.5mm pump fivespeed 3.07 rearend
+ a few more.
mbturbo.com

Palmer
GTA2056V

93
10-19-2013, 05:28 PM #15
Is the 5 speed from a W202 C250 an option? Same engine with a cylinder knocked off....
Palmer
10-19-2013, 05:28 PM #15

Is the 5 speed from a W202 C250 an option? Same engine with a cylinder knocked off....

48 Ford
Naturally-aspirated

12
10-25-2013, 01:45 PM #16
(10-19-2013, 05:28 PM)Palmer Is the 5 speed from a W202 C250 an option? Same engine with a cylinder knocked off....

That is what I used,along with the stock dual mass and clutch,fitted right on no mods.
48 Ford
10-25-2013, 01:45 PM #16

(10-19-2013, 05:28 PM)Palmer Is the 5 speed from a W202 C250 an option? Same engine with a cylinder knocked off....

That is what I used,along with the stock dual mass and clutch,fitted right on no mods.

stig
K26-2

28
10-31-2013, 03:46 PM #17
Have a look here: http://www.clubgwagen.com/forum/viewtopi...=18&t=2913 I did this a while ago, gearbox is great. Mine is a 711.651 from a 2010 Sprinter. In the states they're called NSG370 or NSG400, and yes that's the TQ rating. But all this info is in the thread, including all ratios. Good luck.
stig
10-31-2013, 03:46 PM #17

Have a look here: http://www.clubgwagen.com/forum/viewtopi...=18&t=2913 I did this a while ago, gearbox is great. Mine is a 711.651 from a 2010 Sprinter. In the states they're called NSG370 or NSG400, and yes that's the TQ rating. But all this info is in the thread, including all ratios. Good luck.

Grecy
GTA2056V

75
11-27-2013, 04:53 PM #18
Does anyone have a photo showing the output from these OM606 compatible 6-speed boxes?

EDIT: to be more clear, I'm looking at bolting one of these (716.6xx) to a 4x4 transfer case and I'd like to know the specs for the output shaft, etc.

Thanks,
-Dan
This post was last modified: 11-27-2013, 06:45 PM by Grecy.
Grecy
11-27-2013, 04:53 PM #18

Does anyone have a photo showing the output from these OM606 compatible 6-speed boxes?

EDIT: to be more clear, I'm looking at bolting one of these (716.6xx) to a 4x4 transfer case and I'd like to know the specs for the output shaft, etc.

Thanks,
-Dan

stig
K26-2

28
11-29-2013, 08:39 AM #19

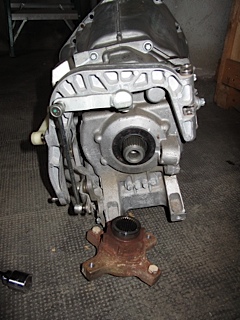

Here's some photos. Don't see how you'd mate a transfer case to the back of this. BUT, if the ML or any 4x4 sedans were available in manual, then it's already done for you.

(11-29-2013, 08:39 AM)stig Here's some photos. Don't see how you'd mate a transfer case to the back of this. BUT, if the ML or any 4x4 sedans were available in manual, then it's already done for you.

(11-29-2013, 08:39 AM)stig Here's some photos. Don't see how you'd mate a transfer case to the back of this. BUT, if the ML or any 4x4 sedans were available in manual, then it's already done for you.

(11-29-2013, 08:39 AM)stig Here's some photos. Don't see how you'd mate a transfer case to the back of this. BUT, if the ML or any 4x4 sedans were available in manual, then it's already done for you.
This post was last modified: 11-29-2013, 08:48 AM by stig.
Attached Files
Image(s)

stig
11-29-2013, 08:39 AM #19

Here's some photos. Don't see how you'd mate a transfer case to the back of this. BUT, if the ML or any 4x4 sedans were available in manual, then it's already done for you.


(11-29-2013, 08:39 AM)stig Here's some photos. Don't see how you'd mate a transfer case to the back of this. BUT, if the ML or any 4x4 sedans were available in manual, then it's already done for you.

(11-29-2013, 08:39 AM)stig Here's some photos. Don't see how you'd mate a transfer case to the back of this. BUT, if the ML or any 4x4 sedans were available in manual, then it's already done for you.

(11-29-2013, 08:39 AM)stig Here's some photos. Don't see how you'd mate a transfer case to the back of this. BUT, if the ML or any 4x4 sedans were available in manual, then it's already done for you.

Attached Files
Image(s)


stig
K26-2

28
11-29-2013, 07:50 PM #20
Or use one of these http://www.ebay.co.uk/itm/2010-SSANGYONG...9315259%26

Here you go, easy: http://www.ebay.co.uk/itm/2002-2005-MERC...1022367335
This post was last modified: 11-29-2013, 08:13 PM by stig.
atypicalguy
Holset

555
02-22-2020, 12:53 AM #21
(10-31-2013, 03:46 PM)stig Have a look here: http://www.clubgwagen.com/forum/viewtopi...=18&t=2913 I did this a while ago, gearbox is great. Mine is a 711.651 from a 2010 Sprinter. In the states they're called NSG370 or NSG400, and yes that's the TQ rating. But all this info is in the thread, including all ratios. Good luck.

This seems like a good idea. Did anyone accomplish this in a w124 body?
atypicalguy
02-22-2020, 12:53 AM #21

(10-31-2013, 03:46 PM)stig Have a look here: http://www.clubgwagen.com/forum/viewtopi...=18&t=2913 I did this a while ago, gearbox is great. Mine is a 711.651 from a 2010 Sprinter. In the states they're called NSG370 or NSG400, and yes that's the TQ rating. But all this info is in the thread, including all ratios. Good luck.

This seems like a good idea. Did anyone accomplish this in a w124 body?
