SL 300D superturbo
SL 300D superturbo
and creating a SL300D turbodiesel or a 300SLD..
so I have a myriad of questions, and I am fishing for some answers.. I have just begun this phase of the project
so while some research has been done, by no means is that complete. I thought I would boost my research
with posts to this and other forums and tap into the vast knowledge base that is out there..
anyway the project photo gallery/journal is located here for those interested :
<!-- m --><a class="postlink" href="http://www.coastalboatsales.com/jfraley/gallery/SL300D">http://www.coastalboatsales.com/jfraley/gallery/SL300D</a><!-- m -->
so below is what I am facing so far..
what am I missing ?
what else have I not thought of ?
thoughts ?
suggestions ?
incorrect information ?
must have electrical systems:
(minimum needed to run)
* starter circuit
starter motor to bat + and solenoid connections to starter switch.. should be a no brainer here.
* glow plug relay
connections from relay to glow plugs (six pole plug )
connection to battery and ground
signal wire to glow lamp indicator on dash
what else is involved with this circuit to enable its operation ?
temp control for glow length operation?
several other wires.. have not traced them
research this more with wiring diagram....
engine monitoring systems:
* water temperature gauge connections
should be plug and play.. hopefully
* oil pressure gauge connections
also plug and play.. hopefully
EDS
Electronic Diesel System
so it appears that this segment of the EDS system is basically all of the ways to turn the AC compressor
ON or OFF:
OFF or back ON via the kickdown switch (S30/1)
OFF or back ON via the automatic transmission switchover valve (Y3) triggering the kickdown switch (S30/1)
OFF via an overspeed condition of the AC compressor (L4) speed sensor
OFF via a low pressure condition on the AC pressure switch (S31)
OFF or ON via temperature condition by switch (S25/11)
OFF or ON via AC switch (S27/1)
<!-- m --><a class="postlink" href="http://www.coastalboatsales.com/jfraley/gallery/SL300D/W124_elec_EDS_ACsystem">http://www.coastalboatsales.com/jfraley ... S_ACsystem</a><!-- m -->
The remainder is the fuel control portion of EDS (idle control)
<!-- m --><a class="postlink" href="http://www.coastalboatsales.com/jfraley/gallery/SL300D/W124elec1">http://www.coastalboatsales.com/jfraley ... /W124elec1</a><!-- m -->
inputs to this system are:
Voltage supply via OVP relay (K1)
engine speed via speed sensor (L3)
coolant temperature via sensor (B11/4)
IP control rod travel via sensor (L7)
air quantity via AFM (B2/1)
manifold (boost) pressure via OVP relay (K1) ?
barometric pressure via sensor (B18)
base circuit resistance via reference resistor (R18/2)
resistance trim via ELR knob (R18/1)
outputs are:
varying voltage to the ELR actuator (Y22)
voltage to vac transducer (Y31) and on to the ARF valve (Y31/1)
test connector diagnostic block
Based on what I see, its basically a big resistance loop with all of the input factors increasing
or decreasing the resistance ( plus the base resistance ) of voltage flow to the ELR actuator
which is on the backside of the injection pump. More voltage=more fuel, less voltage=less fuel.
Pretty simple... Base idle is set with ELR in central position (4) with mechanical stop. Base resistance
can be fine tuned with ELR knob.
* EGR (exhaust gas recirc)
I plan to disable this completely
* PCV ( crankcase vent)
I plan to disable this completely by dumping the vent into a air/oil separator
and vent the oil-free air out of the engine compartment via hose
* Air Flow Meter
I plan to remove/disable this completely
* ARV (air recirculation valve)
disable/remove this
* cruise control
related to EDS as far as sensors ? ( dont think so ) what other inputs are there ? tach ? transmission?
* OVP
appears to be just a feed relay to the EDS control unit, but it is connected to the vac switchover valve
that feeds boost signal to the ALDA, not sure what else is incorporated in this yet.. need more research
At this point I feel pretty comfortable with the EDS system, and I am tyring to decide if I want to keep it..
after removing all the emmisions and other non-essiential crap I am left with this :
<!-- m --><a class="postlink" href="http://www.coastalboatsales.com/jfraley/gallery/SL300D/W124elec1_modified">http://www.coastalboatsales.com/jfraley ... 1_modified</a><!-- m -->
do I bother keeping the entire system with a good portion of it removed ?
It will probably still function if I terminite the not-used wires with either reisistors
or maybe simply leave them unconnected.. a study of the control unit schematic may help
(if its even available )
so what do I really need ? can I just connect power thru the OVP to the ELR actuator
trimmed by the ELR knob and just call it a day without all the feedback loops ?
Or maybe just set the base idle up a bit mechanically so when the A/C is on its not too low ?
vacuum systems:
* wastgate/boost fuel control
from sixto:
The ALDA gets a boost signal from the manifold. A line goes to a VSV which is hooked up to a pressure sensor on the manifold beside the ALDA signal nipple. Pretty simple set-up - +12V to the VSV when the engine is running and a ground signal from the pressure sensor above 1.1 bar. No electrical connection to EDS or anything else. And of course a signal line from the VSV to the ALDA. There's a splitter at the ALDA for a boost signal to the transmission vacuum amplifier. Again, 617s and 603.971s manage without this boost signal to the transmission modulator.
* other vac connections on IP
fuel cut-off connected to ignition switch
I will have to install an electro-vac solenoid possibly tapping off the
ignition coil power wire to control IP fuel-cutoff
study of vac diagrams may help
possible solution for fuel-cutoff: <!-- m --><a class="postlink" href="http://www.grainger.com/Grainger/items/1TMT1">http://www.grainger.com/Grainger/items/1TMT1</a><!-- m -->
* vac reservoir tank behind fender
the vac diagram for the 87W124 shows no vac reservoir do the later cars have them ?
stock vac diagram:
<!-- m --><a class="postlink" href="http://www.coastalboatsales.com/jfraley/gallery/SL300D/W124vac1">http://www.coastalboatsales.com/jfraley ... D/W124vac1</a><!-- m -->

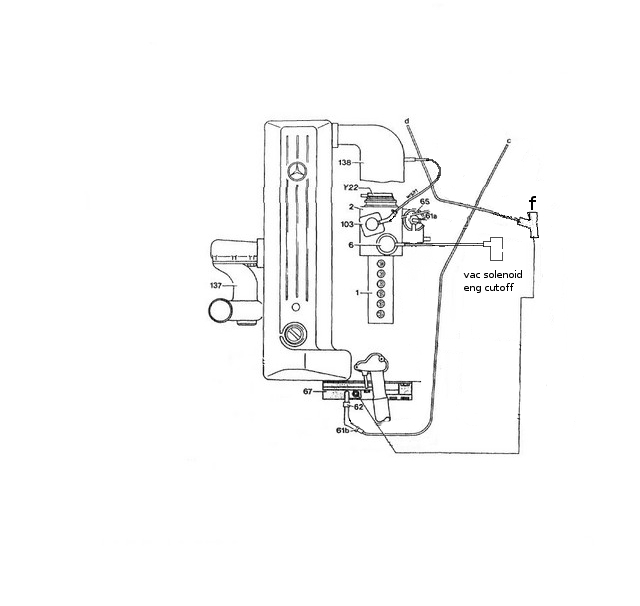

possible modified vac diagram:
<!-- m --><a class="postlink" href="http://www.coastalboatsales.com/jfraley/gallery/SL300D/W124vac1_modified">http://www.coastalboatsales.com/jfraley ... 1_modified</a><!-- m -->
the vac system could maybe be simpler.. have to work on this further....
Transmission:
has electrical connection (four pole plug i think )
what does this do ? just the reverse light and possibly neutral safety switch
FYI I am using the 124 transmission ( not sure of the model )
update: this connector from the W107 car plugs right into the W124 trans..
probably just light and NSS, have to verify with wiring diagram.
control boxes / relays behind battery:
several units .. the EDS in one of them (detailed above)
I think the other one is related to the climate control..
OVP and the A/C relay
other items to boost performance once I get it running reliably
Send out injection pump to myna diesel in finland to be upgraded
or figure out what they do to get more fuel ( bigger injectors etc )
Upgrade turbo+up the boost, holset hx35 is supposed to plug and play with
stock exhaust manifold on the 603.
update: not planning to use the stock manifold, I think I will build a tubular header and use a Holset HX-35
Add an intercooler, I will have to do this, as the the turbo interconnect pipe will not fit with this arrangement
in the W107 car. Plan to locate right behind grille in front of AC condenser and radatior, which will involve replacing
electric fans to behind the cooling stack, with puller units ( instead of pushers ).
This will also involve the removal of the mechanical fan and clutch assy.
Climate control:
The plan is to use the compressor from the W124 and attach it to the W107 climate system. I think the electrical triggering
of the compressor will be all that I have to do.. with the exception of idle control via EDS and the whole compressor
relay mess.. I may come up with some hybrid of W107 and W124 parts.. more work on this needs to be done.
