Unhappy factory rebuild
Unhappy factory rebuild
07-12-2010, 11:38 AM
#1

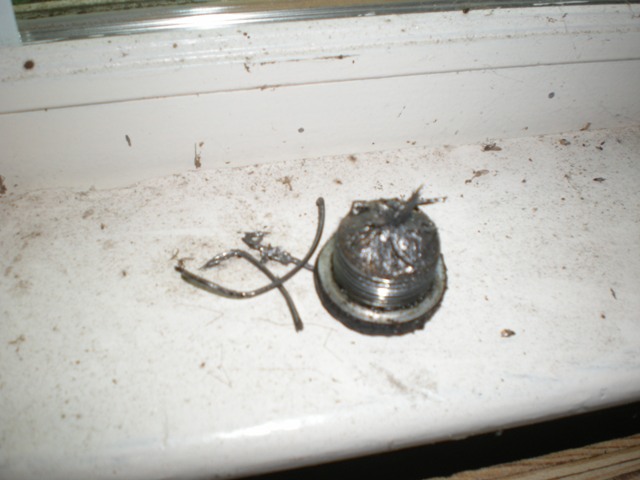

I pulled the drain plug and found this- always a good sign
What happened is the 3rd gear brass clutch spring mechanism some how got out from the clutch/synchro, flew out into the rest of the transmission, and ultimately destroyed both front bearings. Related, but perhaps before this failure, the 3-4 shift collar teeth are all worn down for both gears, and part of the detent mechanism is damaged.
All the other bearings are good, and all the brass clutches are in perfect new looking shape except for 3rd gear, which is scuffed a little.

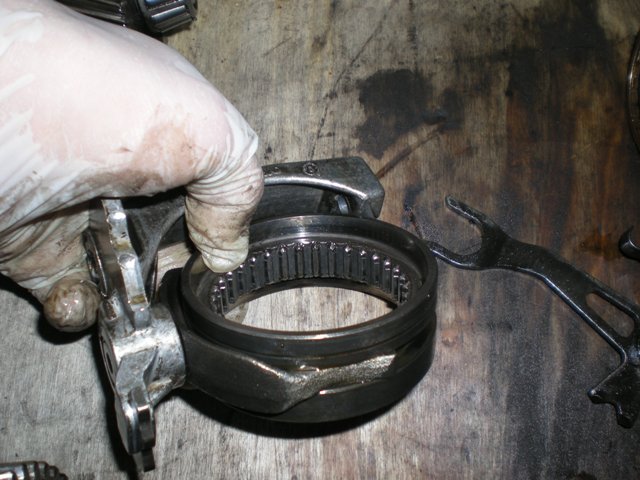

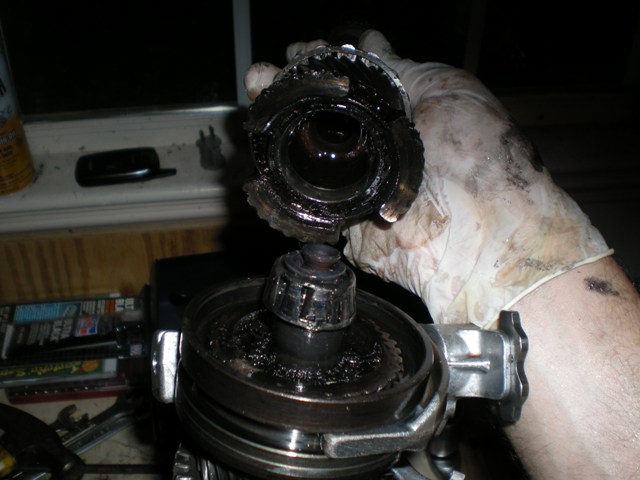

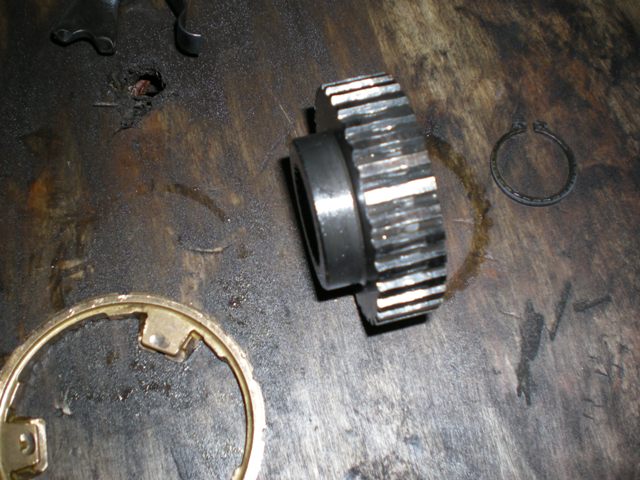

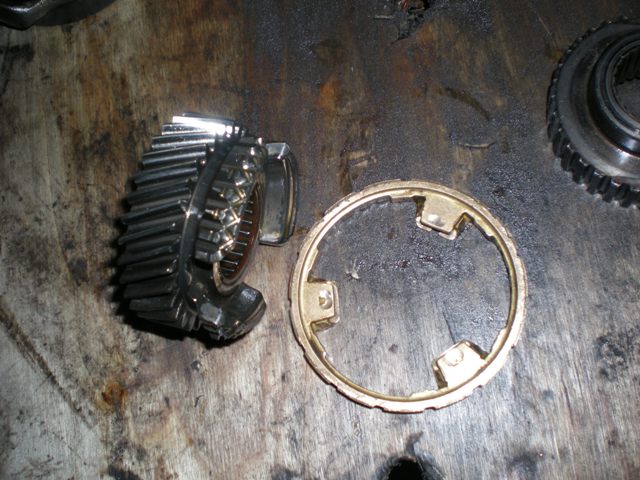

some pics of the damaged components-
What I am trying to determine is HOW this failure occurred, so when I replace or repair all the damaged components, it does not happen again. I keep coming back to this really confusing bit of the transmission that has me stumped.

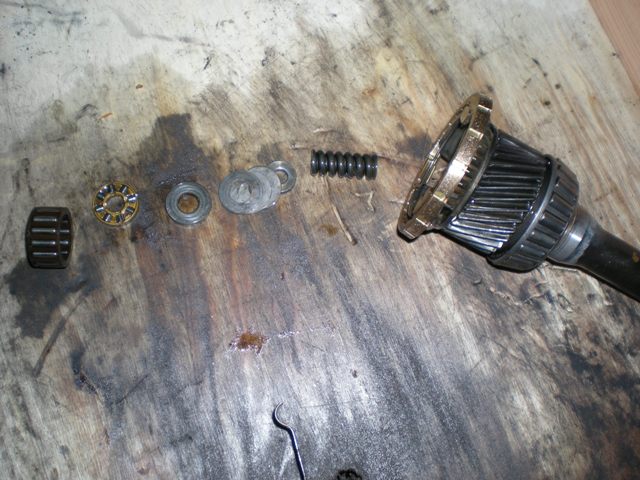

Inside the input shaft, there is a spring, several unusual bearings, washers and spacers. They appeared to be sort of thrown in there when I took this apart and I feel like they have to be related somehow to the failure, but I can't figure out what the purpose of this spring is. I have not seen this before, and there is no load on it, or any thing about the output shaft that could be spring loaded.

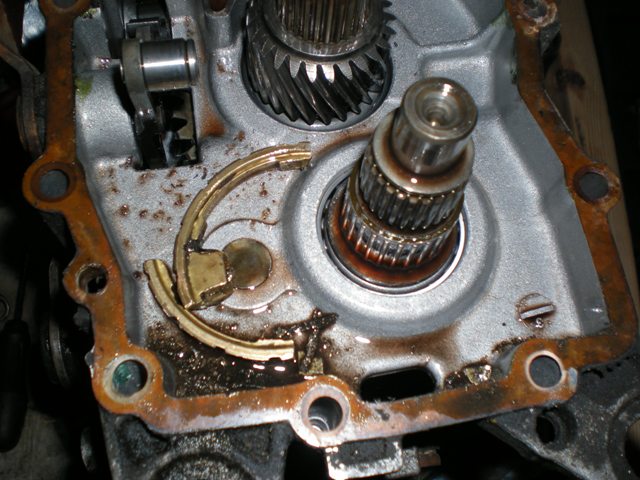

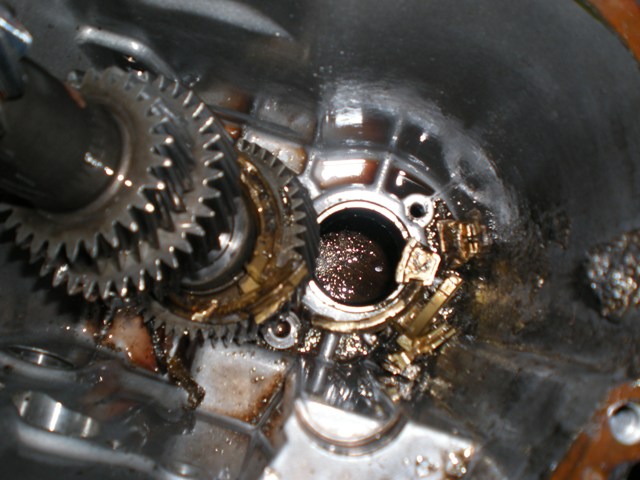

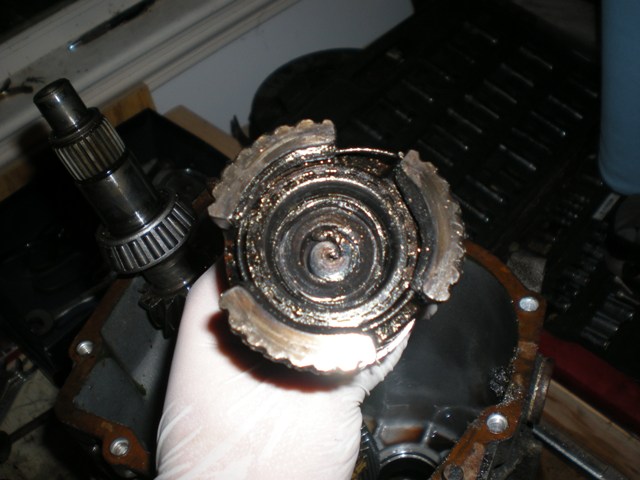

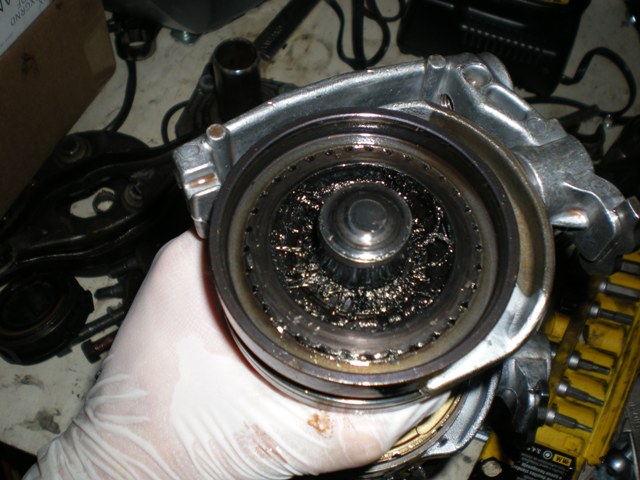

some pics-
Anyone have any theories?
This post was last modified: 07-12-2010, 11:40 AM by JB3.
1974 240D 617 turbo swap, W201 5-speed, in the works project
1983 240D 616 stock, DD
1989 Chevy Astro, 617 turbo swap, T5 5-speed, 4.56 diff, work van

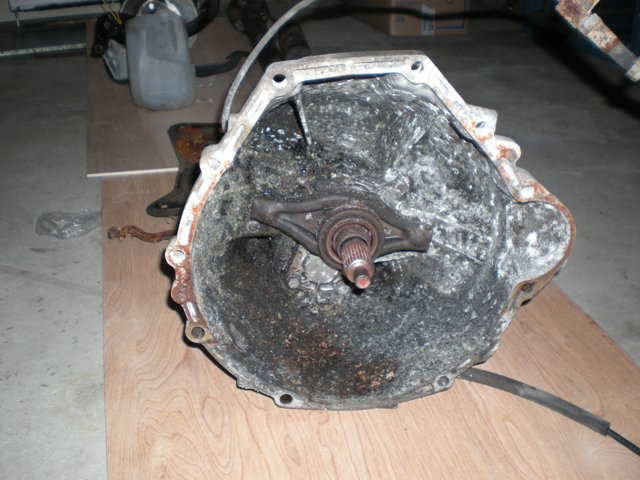

picked up this gearbox a few months ago with the intention of putting it in my 85 wagon eventually, and finally took it apart. It was extremely corroded on the outside, but seemed to work. Also had a MB sticker and appears to have been a relatively recently rebuild, however horrible looking.
I pulled the drain plug and found this- always a good sign
What happened is the 3rd gear brass clutch spring mechanism some how got out from the clutch/synchro, flew out into the rest of the transmission, and ultimately destroyed both front bearings. Related, but perhaps before this failure, the 3-4 shift collar teeth are all worn down for both gears, and part of the detent mechanism is damaged.
All the other bearings are good, and all the brass clutches are in perfect new looking shape except for 3rd gear, which is scuffed a little.
some pics of the damaged components-
What I am trying to determine is HOW this failure occurred, so when I replace or repair all the damaged components, it does not happen again. I keep coming back to this really confusing bit of the transmission that has me stumped.
Inside the input shaft, there is a spring, several unusual bearings, washers and spacers. They appeared to be sort of thrown in there when I took this apart and I feel like they have to be related somehow to the failure, but I can't figure out what the purpose of this spring is. I have not seen this before, and there is no load on it, or any thing about the output shaft that could be spring loaded.
some pics-
Anyone have any theories?
1974 240D 617 turbo swap, W201 5-speed, in the works project
1983 240D 616 stock, DD
1989 Chevy Astro, 617 turbo swap, T5 5-speed, 4.56 diff, work van
07-12-2010, 09:06 PM
#2
I've seen a spring and a large ball bearing in there? in some Toyota trans
This post was last modified: 07-12-2010, 09:07 PM by willbhere4u.
1987 300SDL 6spd manual om606.962 swap project
1985 300td euro 5spd wagon running
willbhere4u
07-12-2010, 09:06 PM #2I've never seen that before
I've seen a spring and a large ball bearing in there? in some Toyota trans
1987 300SDL 6spd manual om606.962 swap project
1985 300td euro 5spd wagon running
07-14-2010, 08:33 PM
#3
In that case, I might have to put a bead of weld on EACH of the worn out nubs, file it down to the right shape, then figure out how to harden it, if such a scheme is even possible.
No wiser on what the purpose of this spring is either, took it by a buddy of mine that does a lot of transmission work, his response was "WTF is as this?"
1974 240D 617 turbo swap, W201 5-speed, in the works project
1983 240D 616 stock, DD
1989 Chevy Astro, 617 turbo swap, T5 5-speed, 4.56 diff, work van
waiting on classic center exploded views, but some of the hard gear parts may be NLA from what I have been hearing, which would be annoying.
In that case, I might have to put a bead of weld on EACH of the worn out nubs, file it down to the right shape, then figure out how to harden it, if such a scheme is even possible.
No wiser on what the purpose of this spring is either, took it by a buddy of mine that does a lot of transmission work, his response was "WTF is as this?"
1974 240D 617 turbo swap, W201 5-speed, in the works project
1983 240D 616 stock, DD
1989 Chevy Astro, 617 turbo swap, T5 5-speed, 4.56 diff, work van
07-20-2010, 10:29 PM
#4
W123 Mods: 4 speed ** manual climate control ** '85 Kalitucky intake ** manual windows & full tint ** Euro headlights retrofit w/bixenon projectors ** 4 brake light mod ** Vogtland 50mm drop front & Lesjofors S600 drop rear springs ** 16" rims ** late w126 brake spindles, rotors & calipers ** full suspension rehab ** Bilstein HDs ** AL129X alternator & 1/0 starter and charging cables ** 300GD clutch/flywheel ** AFCO 80103N radiator & Earl's 41610 oil cooler ** custom block-off plate, remote oil filter & t-stat ** MW IP w/ tomnik's 6.5mm 'Holly' elements **
S124 Mods: 400E Rear subframe ** SL600 Brakes ** Late 300E 210mm diff ** SLK230 6 speed ** 17" CLK rims ** Vented RF Fender ** Facelift Hood, Headlights, and Lower Cladding **
OBK# 62
SurfRodder
07-20-2010, 10:29 PM #4it's probably something someone rigged in there to get it going... something got lost and/or broken and that's what the "solution" ended up being...
W123 Mods: 4 speed ** manual climate control ** '85 Kalitucky intake ** manual windows & full tint ** Euro headlights retrofit w/bixenon projectors ** 4 brake light mod ** Vogtland 50mm drop front & Lesjofors S600 drop rear springs ** 16" rims ** late w126 brake spindles, rotors & calipers ** full suspension rehab ** Bilstein HDs ** AL129X alternator & 1/0 starter and charging cables ** 300GD clutch/flywheel ** AFCO 80103N radiator & Earl's 41610 oil cooler ** custom block-off plate, remote oil filter & t-stat ** MW IP w/ tomnik's 6.5mm 'Holly' elements **
S124 Mods: 400E Rear subframe ** SL600 Brakes ** Late 300E 210mm diff ** SLK230 6 speed ** 17" CLK rims ** Vented RF Fender ** Facelift Hood, Headlights, and Lower Cladding **
OBK# 62
08-11-2010, 07:03 PM
#5
(07-20-2010, 10:29 PM)SurfRodder it's probably something someone rigged in there to get it going... something got lost and/or broken and that's what the "solution" ended up being...
The spring is apparently factory from some EPC diagrams, but still have no idea what its for. It looks like there is some of that kind of hackage going on though, because it has some spacers that absolutely do not fit in there properly, and are not on the EPC.
I sourced another 5-speed to try and upgrade that connection. Turns out there was a little problem in that trans at the same location, which was a 717.411 that had the impeller I was looking for. Unfortunately, the impeller, if it was in there, has been ground to tiny little shards, as well as most of 4th and 3rd synchronization, and the input/output shaft tapered roller bearing.

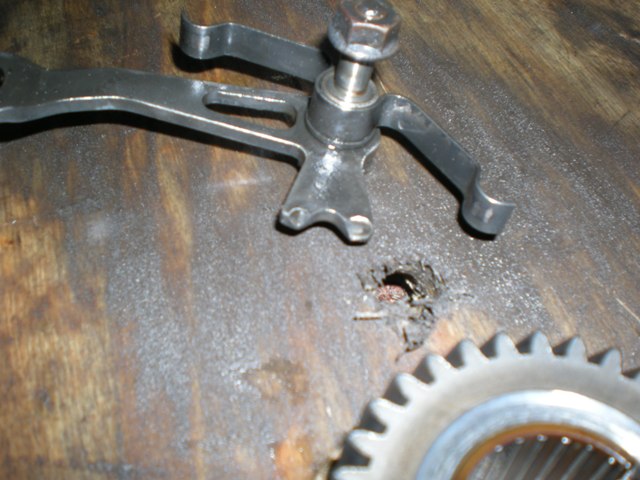

Here are some horrible pictures-
