Spring cutting question... 300TD springs in a 240D how many coils?
Spring cutting question... 300TD springs in a 240D how many coils?
03-15-2011, 01:38 AM
#1
Thanks,
Mike
1981 Mercedes 300TD Lowered 4 speed manual Holset HX30
mike-81-240d
03-15-2011, 01:38 AM #1Okay so I'm about to get a turbo wagon front sway bar, along with 300TD front springs from the same junk yard car. If I'm putting the wagon springs in a sedan how many coils would I cut? I was thinking 1-1.5 on the sedan springs, but I don't know if I should cut the same amount on the wagon springs?
Thanks,
Mike
1981 Mercedes 300TD Lowered 4 speed manual Holset HX30
03-15-2011, 10:10 AM
#2
Here are some pictures lowered cars.
http://www.superturbodiesel.com/std/thre...wered-w123?
.
Gota love Mercedes Diesels!
.
DeliveryValve
03-15-2011, 10:10 AM #2Standard turbo wagon springs are the same as turbo sedans.
Here are some pictures lowered cars.
http://www.superturbodiesel.com/std/thre...wered-w123?
.
Gota love Mercedes Diesels!
.
03-15-2011, 01:24 PM
#3
(03-15-2011, 10:10 AM)DeliveryValve Standard turbo wagon springs are the same as turbo sedans.
No I am pretty sure they are different, however my server is down at home and I cant read the FSM.
1987 300D Sturmmachine
1991 300D Nearly Perfect
1985 300D Weekend/Camping/Dog car
1974 L508D Motoroam Monarch "NightMare"
OBK #42
(03-15-2011, 10:10 AM)DeliveryValve Standard turbo wagon springs are the same as turbo sedans.
No I am pretty sure they are different, however my server is down at home and I cant read the FSM.
1987 300D Sturmmachine
1991 300D Nearly Perfect
1985 300D Weekend/Camping/Dog car
1974 L508D Motoroam Monarch "NightMare"
OBK #42
03-15-2011, 02:28 PM
#4
(03-15-2011, 01:24 PM)winmutt(03-15-2011, 10:10 AM)DeliveryValve Standard turbo wagon springs are the same as turbo sedans.
No I am pretty sure they are different, however my server is down at home and I cant read the FSM.
No they are the same. Even with rough road or additional load suspension, the FSM states the same part number with turbo sedans.
123 321 36 04 and 123 321 41 04.

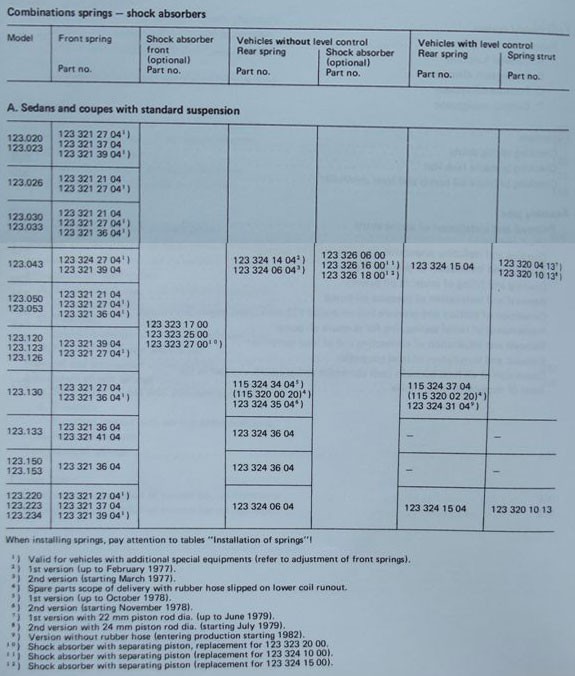

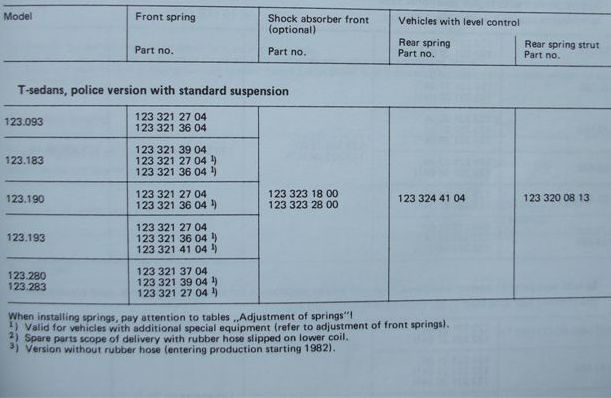

Copy of the FSM on standard springs. 123.133 = turbo sedan 123.193 = turbo wagon.

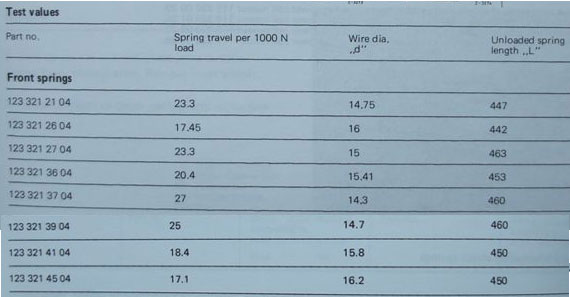

Spring Part Number and Specs.
.
Gota love Mercedes Diesels!
.
DeliveryValve
03-15-2011, 02:28 PM #4(03-15-2011, 01:24 PM)winmutt(03-15-2011, 10:10 AM)DeliveryValve Standard turbo wagon springs are the same as turbo sedans.
No I am pretty sure they are different, however my server is down at home and I cant read the FSM.
No they are the same. Even with rough road or additional load suspension, the FSM states the same part number with turbo sedans.
123 321 36 04 and 123 321 41 04.
Copy of the FSM on standard springs. 123.133 = turbo sedan 123.193 = turbo wagon.
Spring Part Number and Specs.
.
Gota love Mercedes Diesels!
.
03-15-2011, 02:38 PM
#5
Interestingly enough the 123 321 26 04 seems to be the lowest stiffest but does not show up in that list?
1987 300D Sturmmachine
1991 300D Nearly Perfect
1985 300D Weekend/Camping/Dog car
1974 L508D Motoroam Monarch "NightMare"
OBK #42
Thanks for being my FSM, I guess I have been spreading lies...
Interestingly enough the 123 321 26 04 seems to be the lowest stiffest but does not show up in that list?
1987 300D Sturmmachine
1991 300D Nearly Perfect
1985 300D Weekend/Camping/Dog car
1974 L508D Motoroam Monarch "NightMare"
OBK #42
03-15-2011, 03:03 PM
#6
(03-15-2011, 02:38 PM)winmutt Thanks for being my FSM, I guess I have been spreading lies...
Interestingly enough the 123 321 26 04 seems to be the lowest stiffest but does not show up in that list?
Yes I know for a few years now... And I've been contradicting you since.
"26 04" doesn't even show up on the rough road or special version with higher load, etc options. I wonder why it was even mentioned if it wasn't an option.
Makes me wonder if you can still get those new.
.
Gota love Mercedes Diesels!
.
DeliveryValve
03-15-2011, 03:03 PM #6(03-15-2011, 02:38 PM)winmutt Thanks for being my FSM, I guess I have been spreading lies...
Interestingly enough the 123 321 26 04 seems to be the lowest stiffest but does not show up in that list?
Yes I know for a few years now... And I've been contradicting you since.
"26 04" doesn't even show up on the rough road or special version with higher load, etc options. I wonder why it was even mentioned if it wasn't an option.
Makes me wonder if you can still get those new.
.
Gota love Mercedes Diesels!
.
mike-81-240d
03-15-2011, 06:59 PM #7So I guess I'll just chop 1.25 outta the TD/Dt springs.
Thanks guys.
