I think its the same one Forced is using? I'm going to go with full electronic control though. I already have the circuit boards for a new boost and EGT gauge planned out and will be starting on the turbo computer board as soon as it arrives.. Going to implement a CAN (controller area network) just like new cars use to connect everything together. I have a friend taking engineering here at UGA and he said they have a CNC, so I might be able to get parts made on the cheap as practice for students...
Ich liebe meine Autos!
1981 Mercedes-Benz 300SD | 156K Miles | 2nd Owner | EGR Disabled [Removal Pending] | ALDA Removed | Straight Pipes | GT2256V??? | Laser Interceptor | Engine swap over summer, hopefully with GT2256V attached...
1981 Mercedes-Benz 300SD | Odo Stopped at 160K (at least 50K more) | EGR Disabled | ALDA All The Way Out | Straight pipes | FM-870 Remote Start Alarm System | B100 Biodiesel | AC Fixed x2 | Trunk crushed in
| Retired to garage.Excessive speeding? It ain't excessive till I redline!
Finally getting into the turbo project I've had planned for like 2 years...
I think its the same one Forced is using? I'm going to go with full electronic control though. I already have the circuit boards for a new boost and EGT gauge planned out and will be starting on the turbo computer board as soon as it arrives.. Going to implement a CAN (controller area network) just like new cars use to connect everything together. I have a friend taking engineering here at UGA and he said they have a CNC, so I might be able to get parts made on the cheap as practice for students...
Ich liebe meine Autos!
1981 Mercedes-Benz 300SD | 156K Miles | 2nd Owner | EGR Disabled [Removal Pending] | ALDA Removed | Straight Pipes | GT2256V??? | Laser Interceptor | Engine swap over summer, hopefully with GT2256V attached...
1981 Mercedes-Benz 300SD | Odo Stopped at 160K (at least 50K more) | EGR Disabled | ALDA All The Way Out | Straight pipes | FM-870 Remote Start Alarm System | B100 Biodiesel | AC Fixed x2 | Trunk crushed in
| Retired to garage.Excessive speeding? It ain't excessive till I redline!
$75 isn't too bad but they do say it needs rebuilding.
<!-- m --><a class="postlink" href="http://cgi.ebay.com/ebaymotors/MERCEDES-GARRETT-TURBO-AL0030-GT22V_W0QQitemZ390006335328QQihZ026QQcategoryZ33742QQssPageNameZWDVWQQrdZ1QQcmdZViewItem">http://cgi.ebay.com/ebaymotors/MERCEDES ... dZViewItem</a><!-- m -->
ForcedInduction
11-10-2008, 02:28 PM
#2

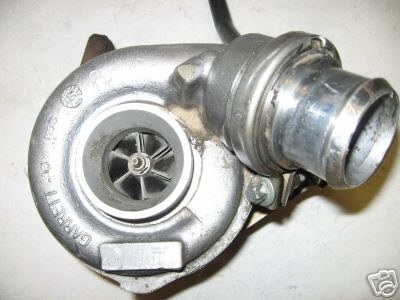

Basically the same. That compressor wheel looks pretty chewed up and the turbine looks like the engine was burning coolant.
$75 isn't too bad but they do say it needs rebuilding.
<!-- m --><a class="postlink" href="http://cgi.ebay.com/ebaymotors/MERCEDES-GARRETT-TURBO-AL0030-GT22V_W0QQitemZ390006335328QQihZ026QQcategoryZ33742QQssPageNameZWDVWQQrdZ1QQcmdZViewItem">http://cgi.ebay.com/ebaymotors/MERCEDES ... dZViewItem</a><!-- m -->
Ich liebe meine Autos!
1981 Mercedes-Benz 300SD | 156K Miles | 2nd Owner | EGR Disabled [Removal Pending] | ALDA Removed | Straight Pipes | GT2256V??? | Laser Interceptor | Engine swap over summer, hopefully with GT2256V attached...
1981 Mercedes-Benz 300SD | Odo Stopped at 160K (at least 50K more) | EGR Disabled | ALDA All The Way Out | Straight pipes | FM-870 Remote Start Alarm System | B100 Biodiesel | AC Fixed x2 | Trunk crushed in
| Retired to garage.Excessive speeding? It ain't excessive till I redline!
I was afraid someone would say that... I thought it was just dirt on the compressor wheel in the pic, didn't look that closely since the auction was ending in a few hours and I had to go to class...
Ich liebe meine Autos!
1981 Mercedes-Benz 300SD | 156K Miles | 2nd Owner | EGR Disabled [Removal Pending] | ALDA Removed | Straight Pipes | GT2256V??? | Laser Interceptor | Engine swap over summer, hopefully with GT2256V attached...
1981 Mercedes-Benz 300SD | Odo Stopped at 160K (at least 50K more) | EGR Disabled | ALDA All The Way Out | Straight pipes | FM-870 Remote Start Alarm System | B100 Biodiesel | AC Fixed x2 | Trunk crushed in
| Retired to garage.Excessive speeding? It ain't excessive till I redline!
It will still work and balancing should be part of the rebuild, but with worn leading edges it will lose some efficiency.
ForcedInduction
11-10-2008, 02:39 PM
#4
Thats why I never consider buying a turbo unless they have a good picture of the compressor wheel.
It will still work and balancing should be part of the rebuild, but with worn leading edges it will lose some efficiency.
Ich liebe meine Autos!
1981 Mercedes-Benz 300SD | 156K Miles | 2nd Owner | EGR Disabled [Removal Pending] | ALDA Removed | Straight Pipes | GT2256V??? | Laser Interceptor | Engine swap over summer, hopefully with GT2256V attached...
1981 Mercedes-Benz 300SD | Odo Stopped at 160K (at least 50K more) | EGR Disabled | ALDA All The Way Out | Straight pipes | FM-870 Remote Start Alarm System | B100 Biodiesel | AC Fixed x2 | Trunk crushed in
| Retired to garage.Excessive speeding? It ain't excessive till I redline!
Would the reduced efficiency be below that of the stock turbo?
Ich liebe meine Autos!
1981 Mercedes-Benz 300SD | 156K Miles | 2nd Owner | EGR Disabled [Removal Pending] | ALDA Removed | Straight Pipes | GT2256V??? | Laser Interceptor | Engine swap over summer, hopefully with GT2256V attached...
1981 Mercedes-Benz 300SD | Odo Stopped at 160K (at least 50K more) | EGR Disabled | ALDA All The Way Out | Straight pipes | FM-870 Remote Start Alarm System | B100 Biodiesel | AC Fixed x2 | Trunk crushed in
| Retired to garage.Excessive speeding? It ain't excessive till I redline!
'Jurgen' - 1982 300sd cream paint with palimino MB tex interior. Now running with new cooling system
.......discovered oil cooler has pinhole @#$%@
Nitrile gloves back on......'Otto' - 1985 300sd anthracite? grey/silver? with grey leather interior. (heated front seats!!!!
) Euro headlightsMods are in the works...
Telecommbrkr
11-11-2008, 08:32 PM #8What is the make/model of the VNT found on the '03 & up Powerstrokes?
'Jurgen' - 1982 300sd cream paint with palimino MB tex interior. Now running with new cooling system
.......discovered oil cooler has pinhole @#$%@ Nitrile gloves back on......'Otto' - 1985 300sd anthracite? grey/silver? with grey leather interior. (heated front seats!!!!
) Euro headlightsMods are in the works...
Its a lot smaller than I expected, is everyones VNT smaller than the stock turbo?
How do I figure out the exact model number of the turbo, as in GT22xxV?
Ich liebe meine Autos!
1981 Mercedes-Benz 300SD | 156K Miles | 2nd Owner | EGR Disabled [Removal Pending] | ALDA Removed | Straight Pipes | GT2256V??? | Laser Interceptor | Engine swap over summer, hopefully with GT2256V attached...
1981 Mercedes-Benz 300SD | Odo Stopped at 160K (at least 50K more) | EGR Disabled | ALDA All The Way Out | Straight pipes | FM-870 Remote Start Alarm System | B100 Biodiesel | AC Fixed x2 | Trunk crushed in
| Retired to garage.Excessive speeding? It ain't excessive till I redline!
It came in today!!
Its a lot smaller than I expected, is everyones VNT smaller than the stock turbo?
How do I figure out the exact model number of the turbo, as in GT22xxV?
Ich liebe meine Autos!
1981 Mercedes-Benz 300SD | 156K Miles | 2nd Owner | EGR Disabled [Removal Pending] | ALDA Removed | Straight Pipes | GT2256V??? | Laser Interceptor | Engine swap over summer, hopefully with GT2256V attached...
1981 Mercedes-Benz 300SD | Odo Stopped at 160K (at least 50K more) | EGR Disabled | ALDA All The Way Out | Straight pipes | FM-870 Remote Start Alarm System | B100 Biodiesel | AC Fixed x2 | Trunk crushed in
| Retired to garage.Excessive speeding? It ain't excessive till I redline!
Ich liebe meine Autos!
1981 Mercedes-Benz 300SD | 156K Miles | 2nd Owner | EGR Disabled [Removal Pending] | ALDA Removed | Straight Pipes | GT2256V??? | Laser Interceptor | Engine swap over summer, hopefully with GT2256V attached...
1981 Mercedes-Benz 300SD | Odo Stopped at 160K (at least 50K more) | EGR Disabled | ALDA All The Way Out | Straight pipes | FM-870 Remote Start Alarm System | B100 Biodiesel | AC Fixed x2 | Trunk crushed in
| Retired to garage.Excessive speeding? It ain't excessive till I redline!
Found out from EPC that it came from an OM647, and got a part number for the gasket. Not having any luck finding the part numbers for the oil fittings though, hopefully its a standard thread and I can probably have the return flange made. Theres no way to clamp tubing to the outside of the compressor outlet, so I'm going to have to find a way to either friction fit it inside or I'm going to have to drill into the turbo to attach it. I emailed my friend's engineering professor about using the school's CNC machine, so hopefully he'll get back to me soon.
Ich liebe meine Autos!
1981 Mercedes-Benz 300SD | 156K Miles | 2nd Owner | EGR Disabled [Removal Pending] | ALDA Removed | Straight Pipes | GT2256V??? | Laser Interceptor | Engine swap over summer, hopefully with GT2256V attached...
1981 Mercedes-Benz 300SD | Odo Stopped at 160K (at least 50K more) | EGR Disabled | ALDA All The Way Out | Straight pipes | FM-870 Remote Start Alarm System | B100 Biodiesel | AC Fixed x2 | Trunk crushed in
| Retired to garage.Excessive speeding? It ain't excessive till I redline!
<!-- m --><a class="postlink" href="http://cgi.ebay.com/ebaymotors/Turbo-Oil-Drain-Pipe-Kit-Garrett-GT20-GT22-GT25-GT28_W0QQitemZ380074971453">http://cgi.ebay.com/ebaymotors/Turbo-Oi ... 0074971453</a><!-- m -->

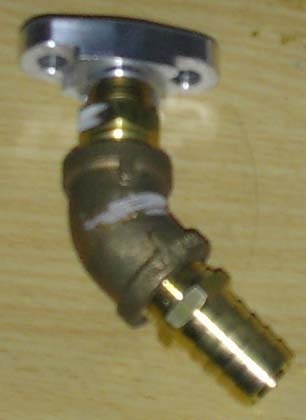

[attachment=1]<!-- ia1 -->LMN GT2256V oil drain.jpg<!-- ia1 -->[/attachment]
The feed line is a standard metric banjo fitting, any good hydraulic shop will have one in stock.
Quote:Theres no way to clamp tubing to the outside of the compressor outlet, so I'm going to have to find a way to either friction fit it inside or I'm going to have to drill into the turbo to attach it.I used a grinder and cut mine down to accept a 2.5" boot.
[attachment=0]<!-- ia0 -->cut.jpg<!-- ia0 -->[/attachment]
Quote:Its a lot smaller than I expected, is everyones VNT smaller than the stock turbo?Yes. Thanks to advances in production and wheel efficiency, they don't need to be as big as the paddle wheel T3.
ForcedInduction
11-14-2008, 05:23 AM
#12
You need one of these: <!-- m --><a class="postlink" href="http://cgi.ebay.com/ebaymotors/Billet-Oil-Drain-Flange-GT-Series-Ball-Bearing-Turbos_W0QQitemZ360105089753">http://cgi.ebay.com/ebaymotors/Billet-O ... 0105089753</a><!-- m -->
<!-- m --><a class="postlink" href="http://cgi.ebay.com/ebaymotors/Turbo-Oil-Drain-Pipe-Kit-Garrett-GT20-GT22-GT25-GT28_W0QQitemZ380074971453">http://cgi.ebay.com/ebaymotors/Turbo-Oi ... 0074971453</a><!-- m -->
[attachment=1]<!-- ia1 -->LMN GT2256V oil drain.jpg<!-- ia1 -->[/attachment]
The feed line is a standard metric banjo fitting, any good hydraulic shop will have one in stock.
Quote:Theres no way to clamp tubing to the outside of the compressor outlet, so I'm going to have to find a way to either friction fit it inside or I'm going to have to drill into the turbo to attach it.I used a grinder and cut mine down to accept a 2.5" boot.
[attachment=0]<!-- ia0 -->cut.jpg<!-- ia0 -->[/attachment]
Quote:Its a lot smaller than I expected, is everyones VNT smaller than the stock turbo?Yes. Thanks to advances in production and wheel efficiency, they don't need to be as big as the paddle wheel T3.
Ich liebe meine Autos!
1981 Mercedes-Benz 300SD | 156K Miles | 2nd Owner | EGR Disabled [Removal Pending] | ALDA Removed | Straight Pipes | GT2256V??? | Laser Interceptor | Engine swap over summer, hopefully with GT2256V attached...
1981 Mercedes-Benz 300SD | Odo Stopped at 160K (at least 50K more) | EGR Disabled | ALDA All The Way Out | Straight pipes | FM-870 Remote Start Alarm System | B100 Biodiesel | AC Fixed x2 | Trunk crushed in
| Retired to garage.Excessive speeding? It ain't excessive till I redline!
Bit tougher than just grinding it down on this one, the actuator mount is attached to the outlet. I got the actuator off and opened it up today, not sure if I can reverse engineer the signals used by the existing controller, but I can definitely build m own controller... Taking it to my house this afternoon so I can clean it without worrying about getting fined for making a mess in the bathrooms here..do I need to worry about getting water into the insides of the turbo? I'll start on the actuator circuit when I get back from the Auburn game on sunday, love to have this running in time for the drive to the bowl game, but I doubt thats going to happen.. Not sure if I want to put the entire turbo computer on the turbo or just send position signals to it yet...
Ich liebe meine Autos!
1981 Mercedes-Benz 300SD | 156K Miles | 2nd Owner | EGR Disabled [Removal Pending] | ALDA Removed | Straight Pipes | GT2256V??? | Laser Interceptor | Engine swap over summer, hopefully with GT2256V attached...
1981 Mercedes-Benz 300SD | Odo Stopped at 160K (at least 50K more) | EGR Disabled | ALDA All The Way Out | Straight pipes | FM-870 Remote Start Alarm System | B100 Biodiesel | AC Fixed x2 | Trunk crushed in
| Retired to garage.Excessive speeding? It ain't excessive till I redline!

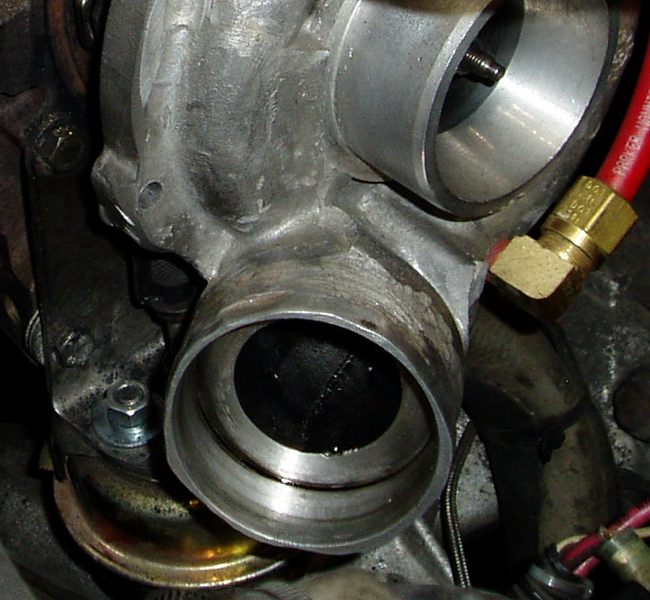

[attachment=1]<!-- ia1 -->GT2256V compressor outlet 1.jpg<!-- ia1 -->[/attachment]

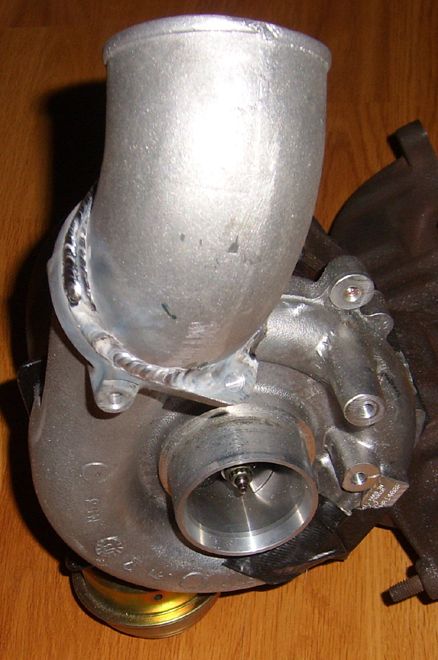

[attachment=0]<!-- ia0 -->GT2260V-5.jpg<!-- ia0 -->[/attachment]
ForcedInduction
11-14-2008, 11:28 AM
#14
The housing is normal aluminum. You could find the stock fitting to bolt-on or you could have one welded on.
[attachment=1]<!-- ia1 -->GT2256V compressor outlet 1.jpg<!-- ia1 -->[/attachment]
[attachment=0]<!-- ia0 -->GT2260V-5.jpg<!-- ia0 -->[/attachment]
