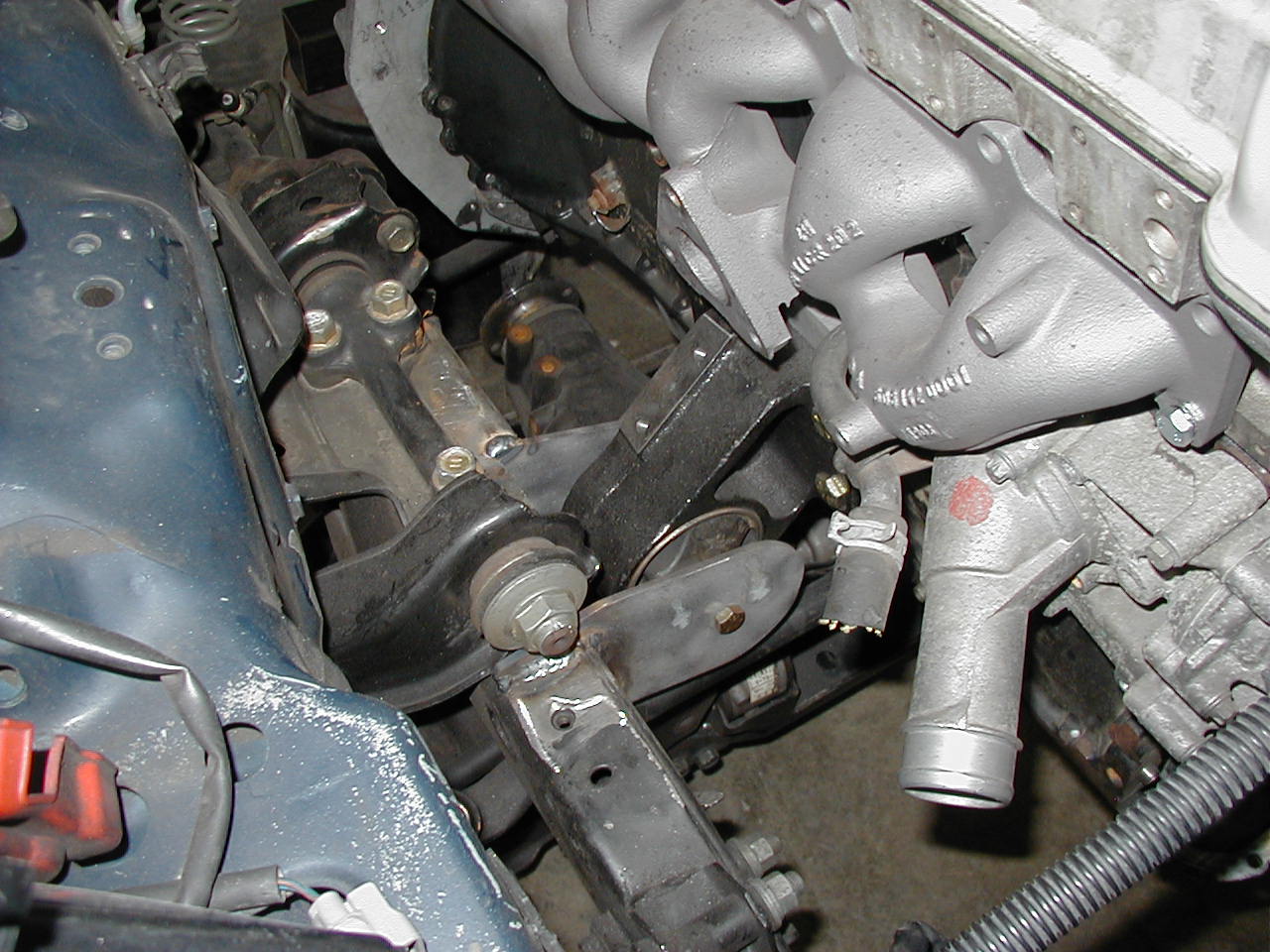

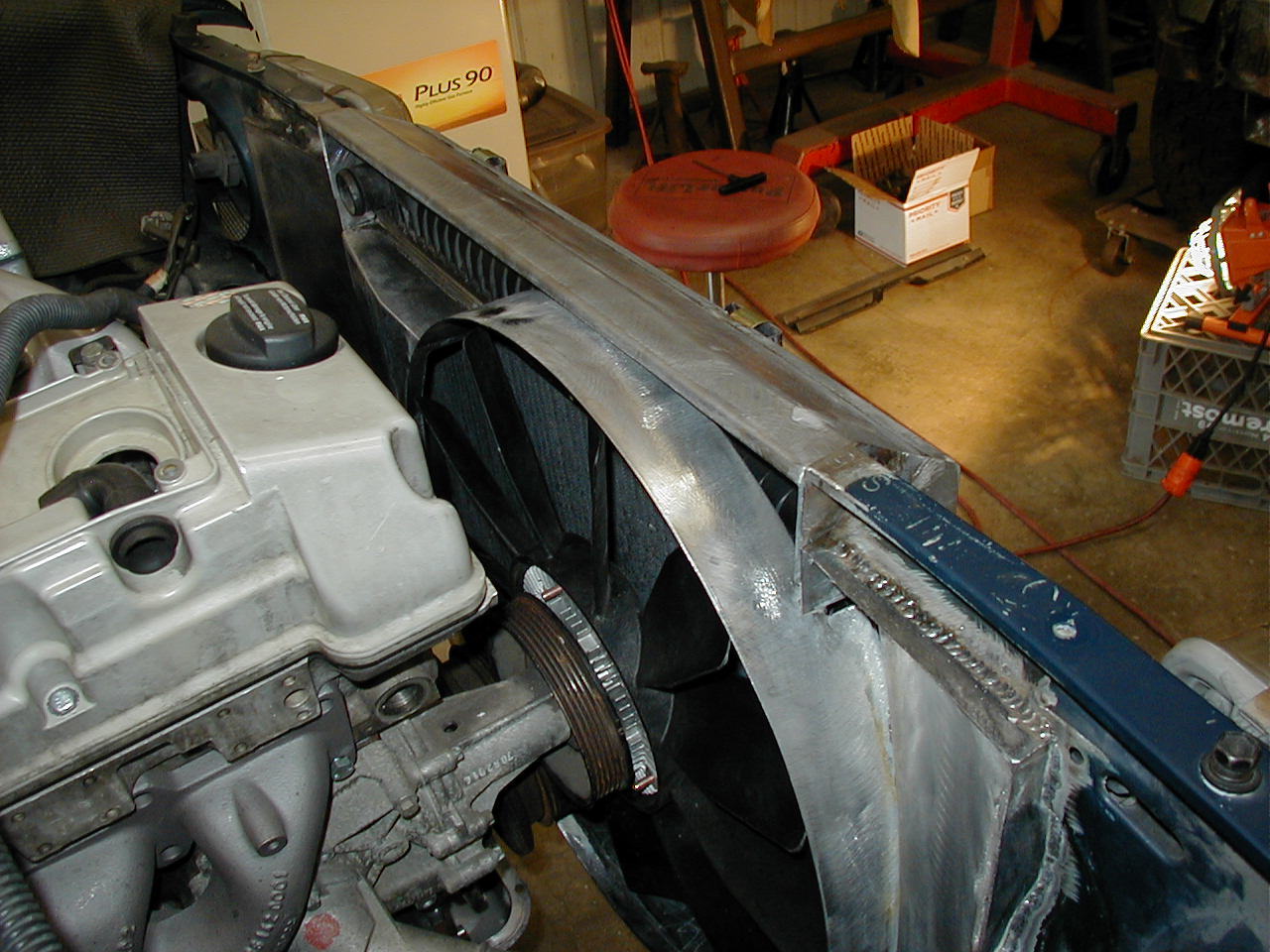

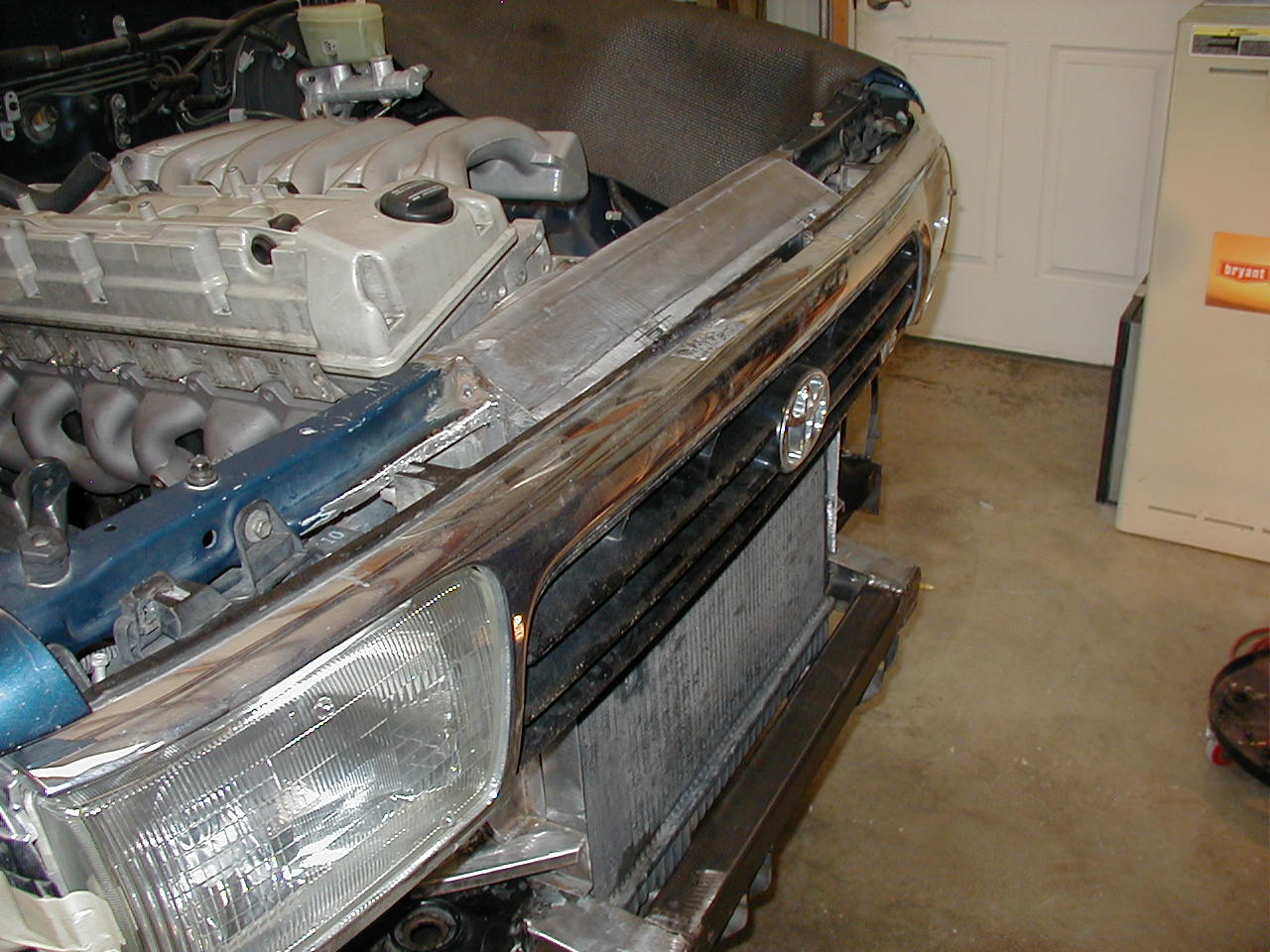

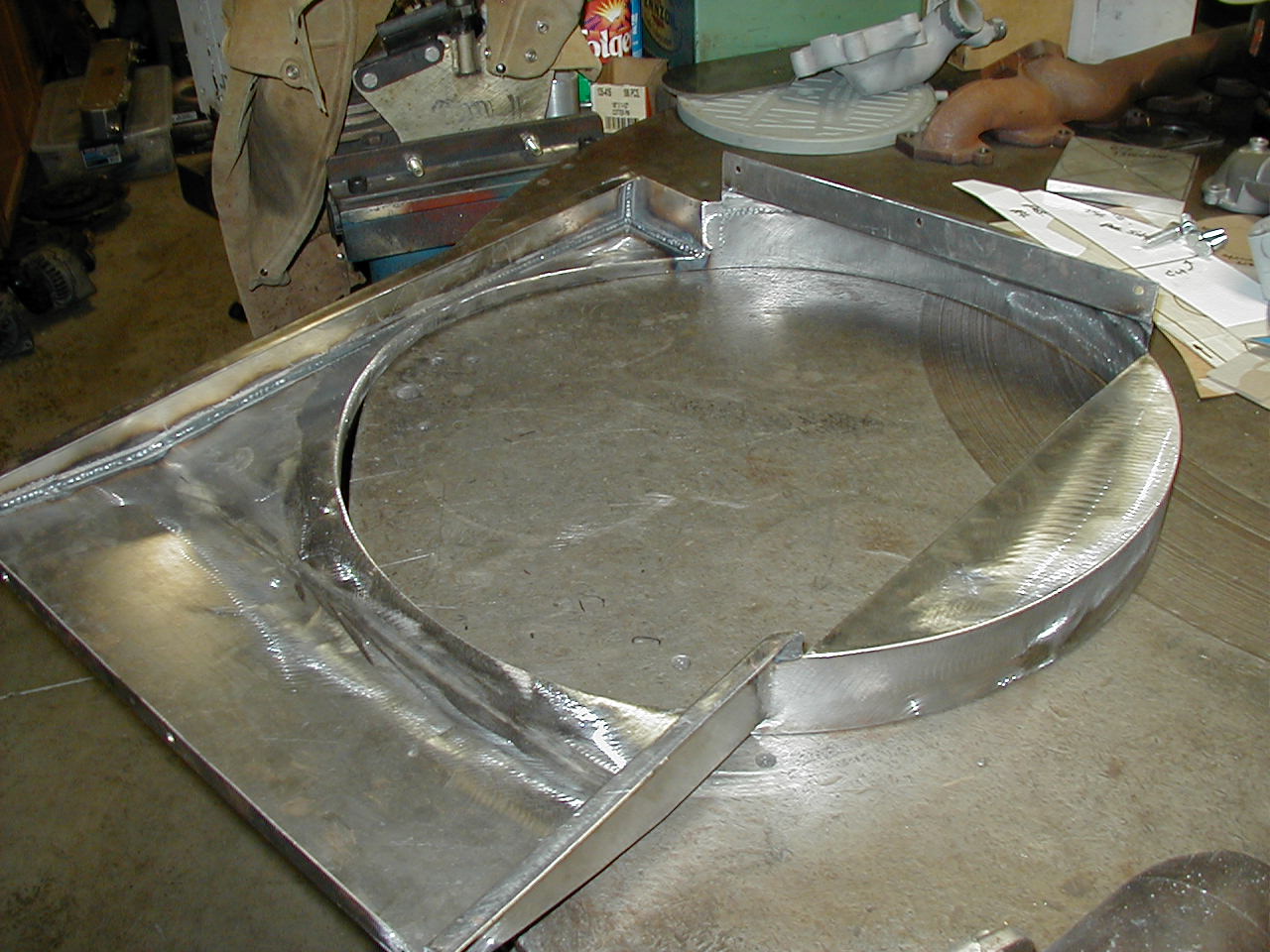

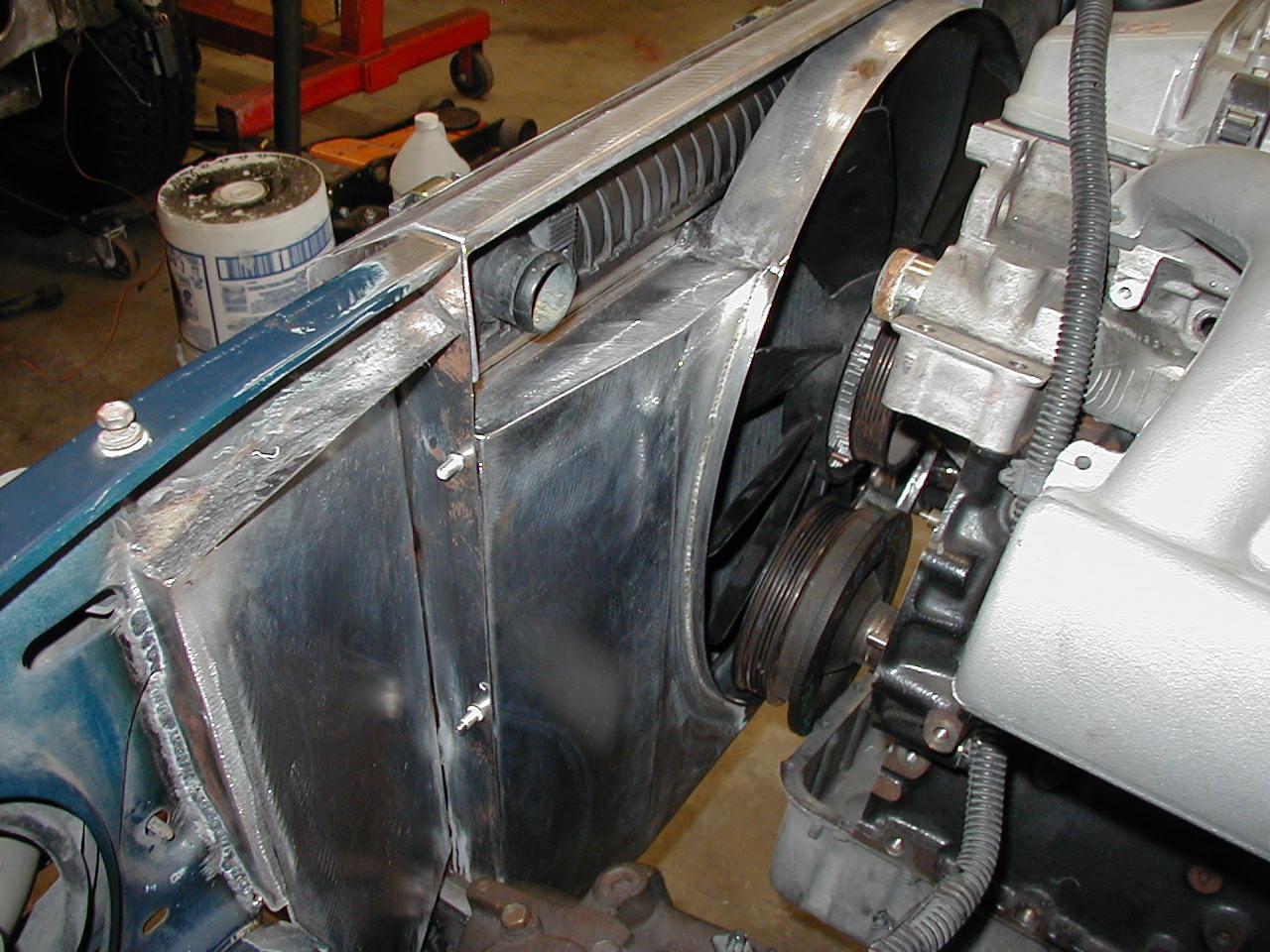

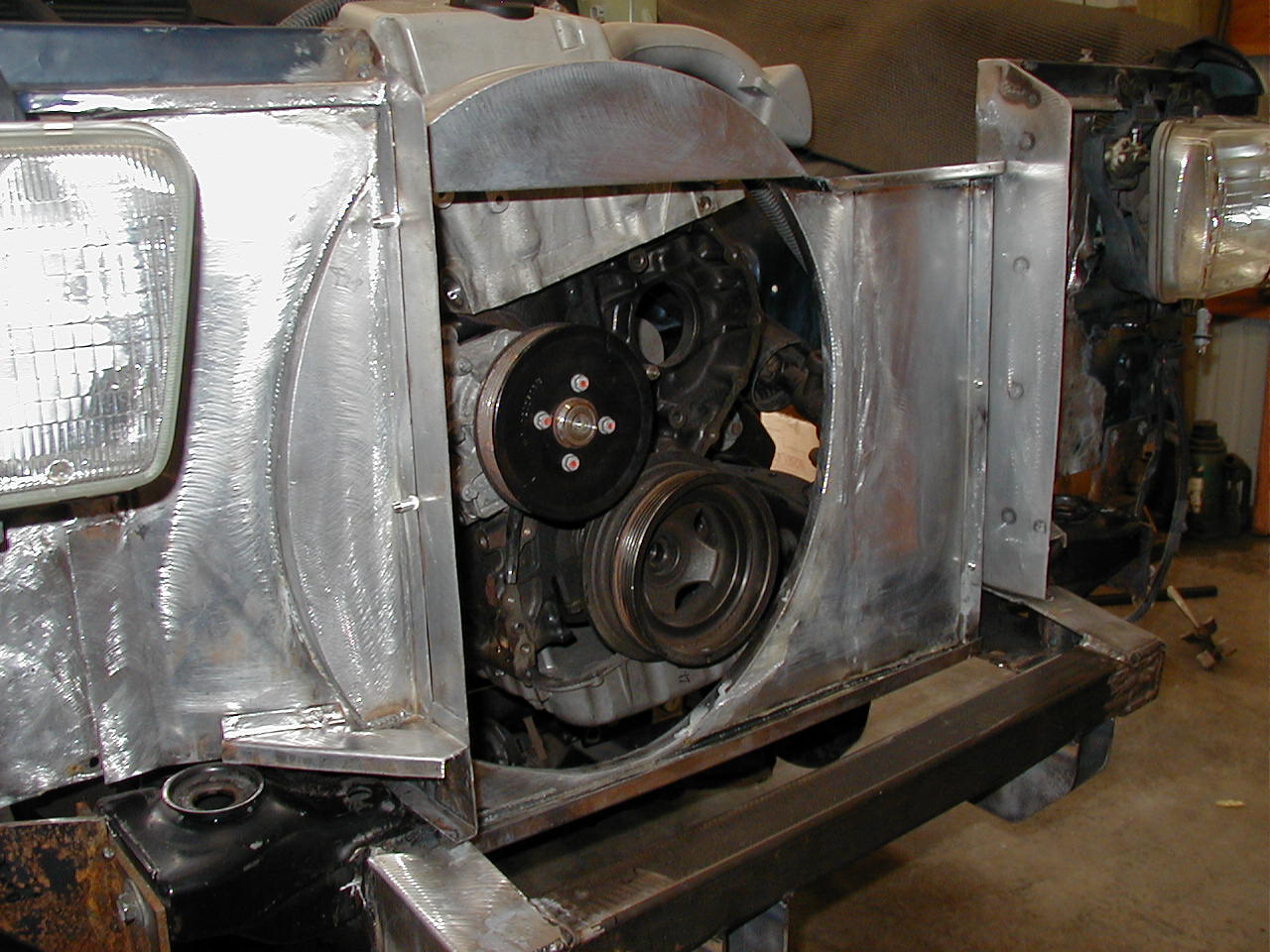

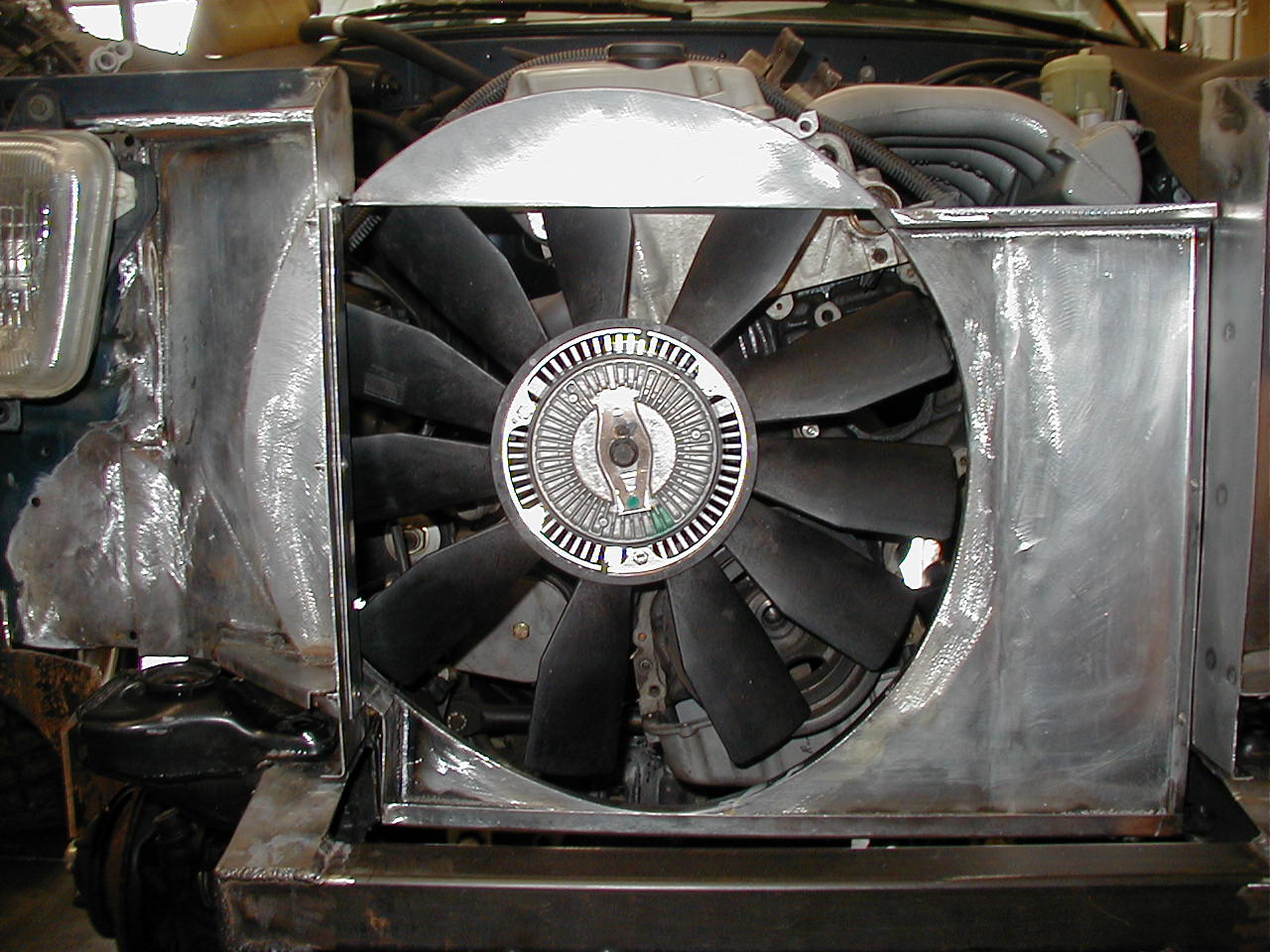

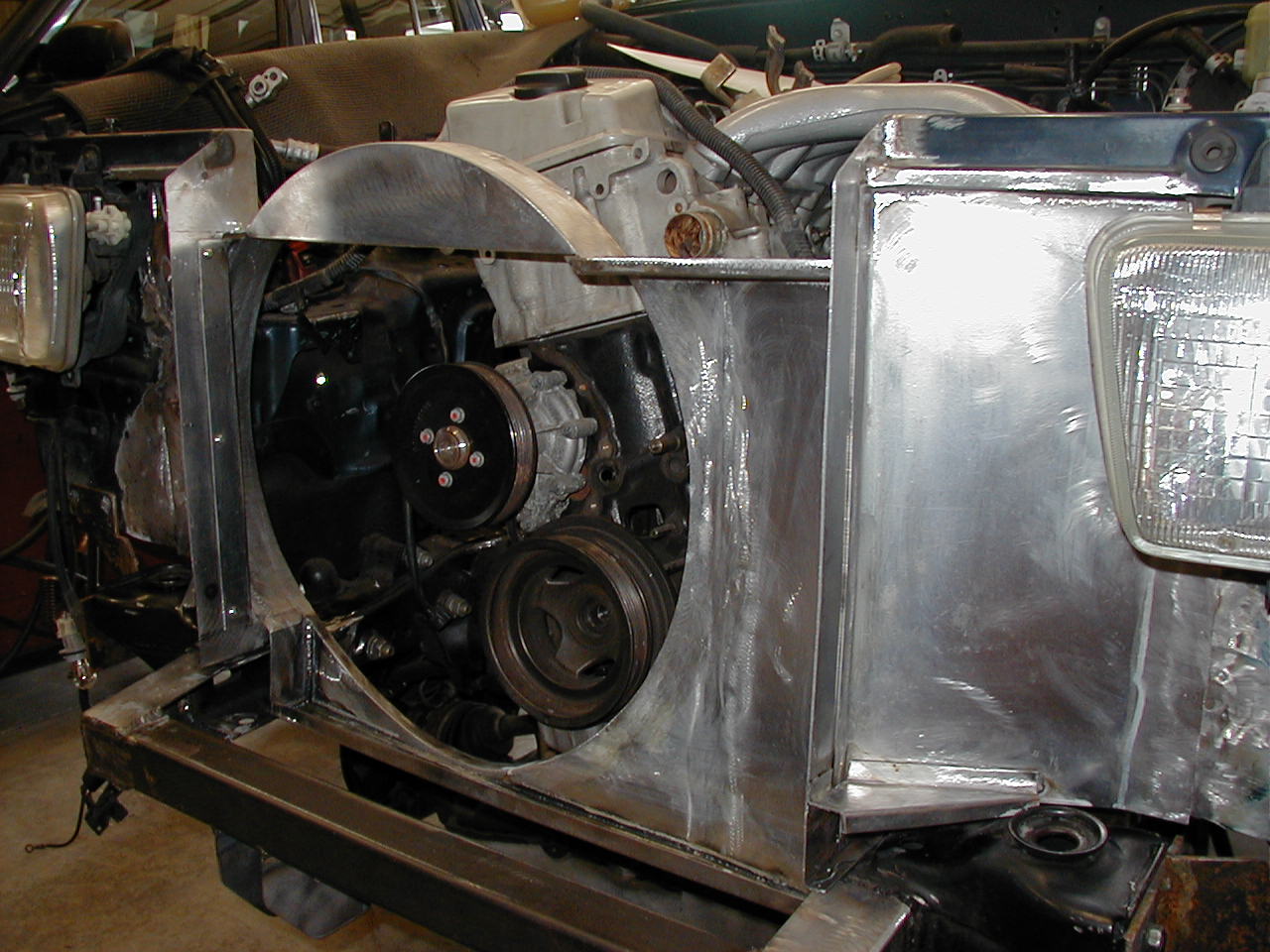

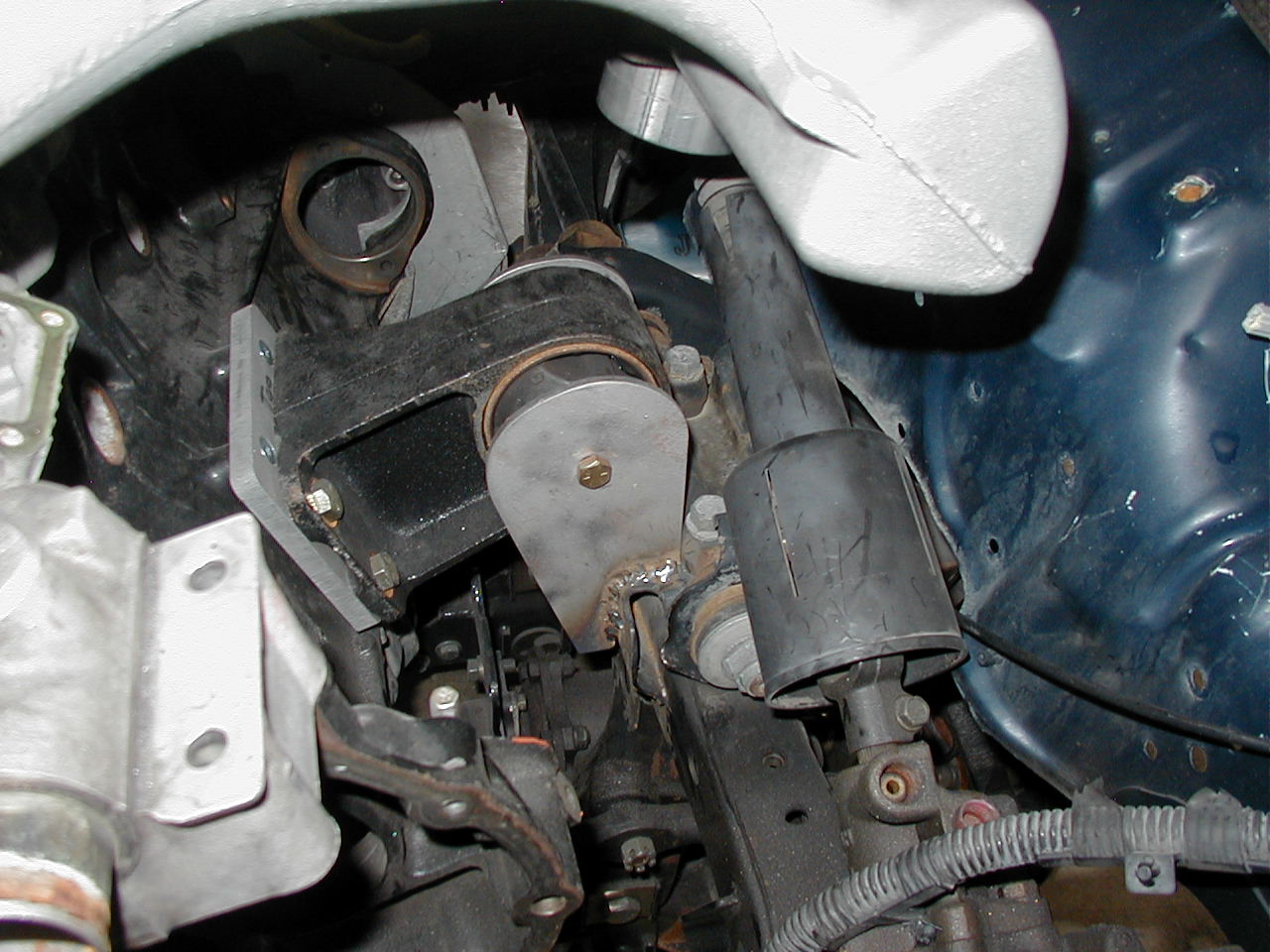

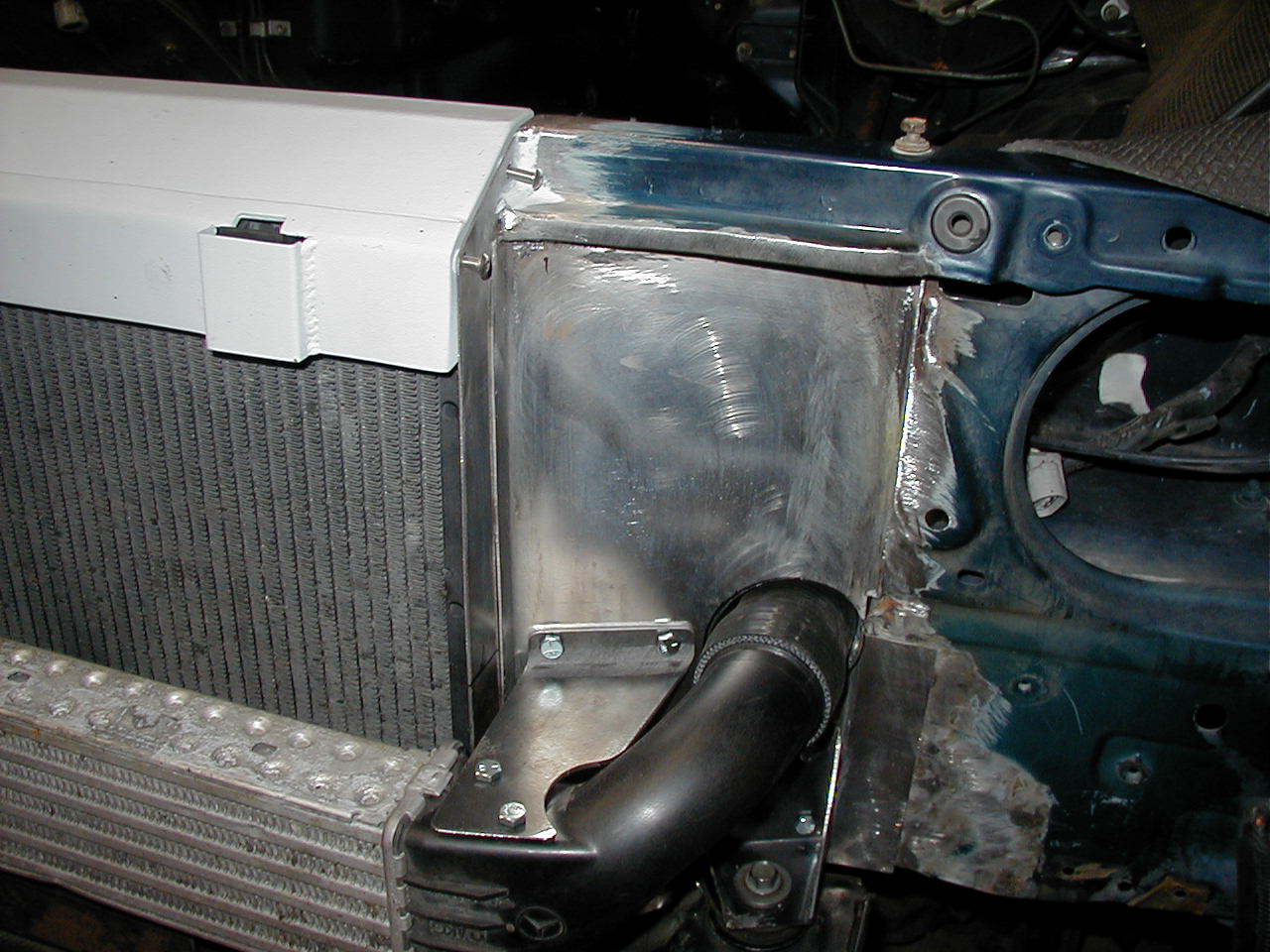

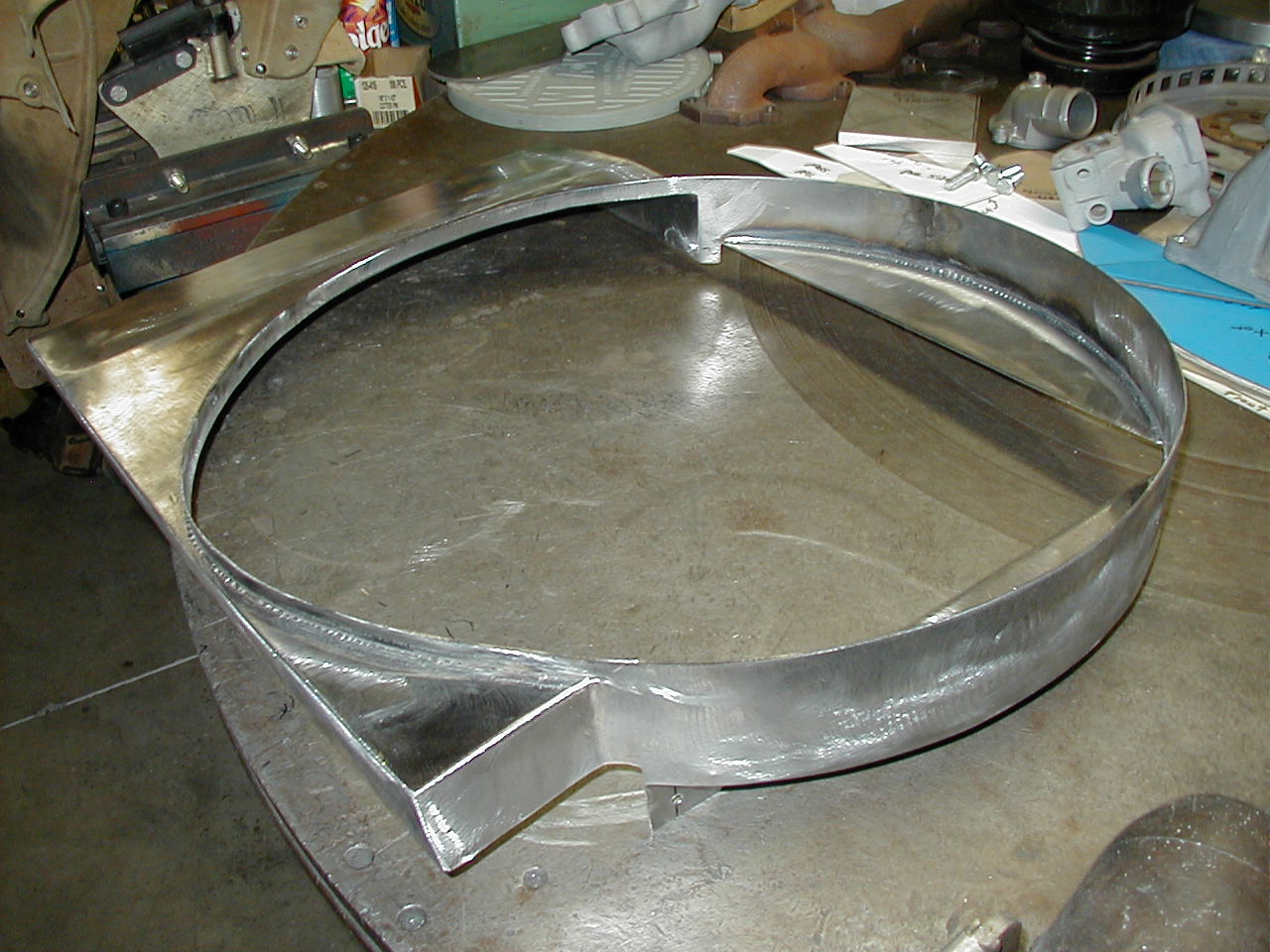

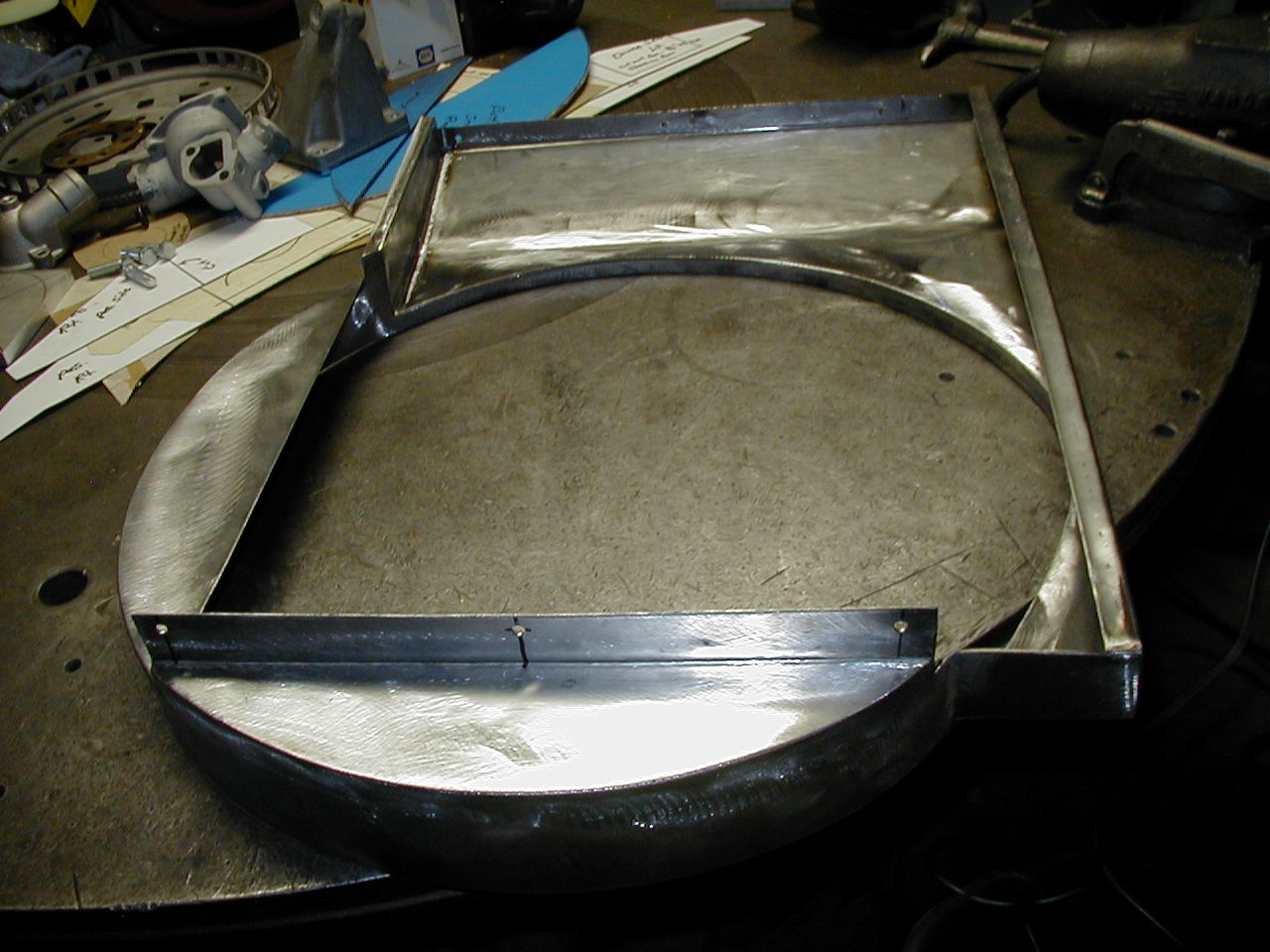

Mocking up core motor in customers car, fabricating engine mounts using Cummins mounts. Used OM 648 rear sump oil pan to clear diff. Extended frame rails for radiator and fabricated core support sheet metal and fan shroud.
Attached Files
Image(s)

zeeman
07-18-2015, 01:58 AM #1

Mocking up core motor in customers car, fabricating engine mounts using Cummins mounts. Used OM 648 rear sump oil pan to clear diff. Extended frame rails for radiator and fabricated core support sheet metal and fan shroud.

Attached Files
Image(s)


Reply
Reply
DiseaselWeasel
Website Find
Holset

420
07-18-2015, 04:18 AM #2
Reply
Reply
This is fantastic craftmanship right there! Smile I like that!
____________________________________

'88 300CD Turbo Coupé - OM603
DiseaselWeasel
07-18-2015, 04:18 AM #2

This is fantastic craftmanship right there! Smile I like that!

____________________________________

'88 300CD Turbo Coupé - OM603

Reply
Reply
Torkey
Find
Dirty Diesel

220
07-21-2015, 12:01 PM #3
Reply
Reply
Subscribing
79 300CD
82 300SD
Dirty Little Freaks Racing
Torkey
07-21-2015, 12:01 PM #3

Subscribing

79 300CD
82 300SD
Dirty Little Freaks Racing

Reply
Reply
zeeman
Find
Holset

444
06-04-2016, 11:51 AM #4
Reply
Reply

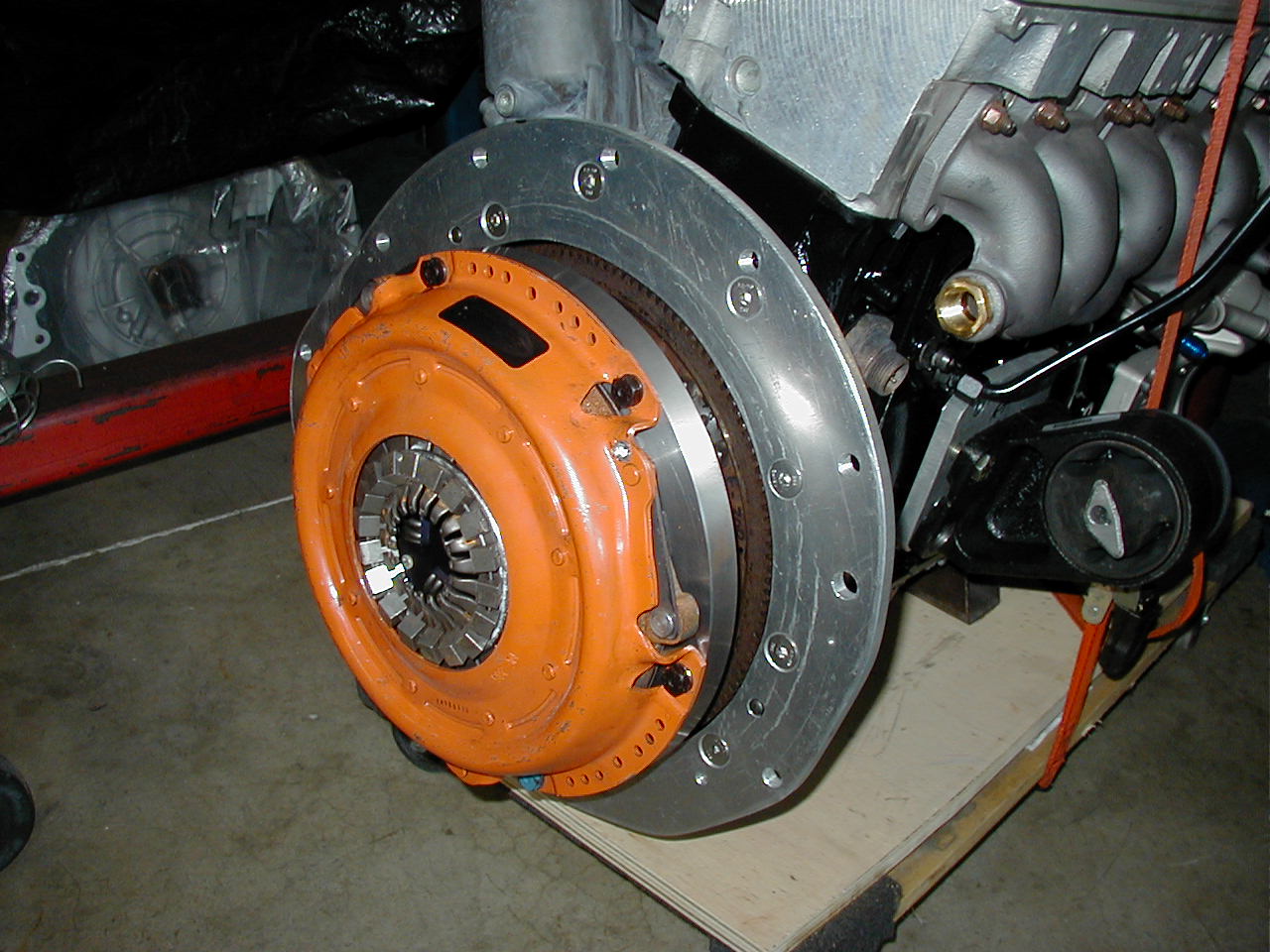

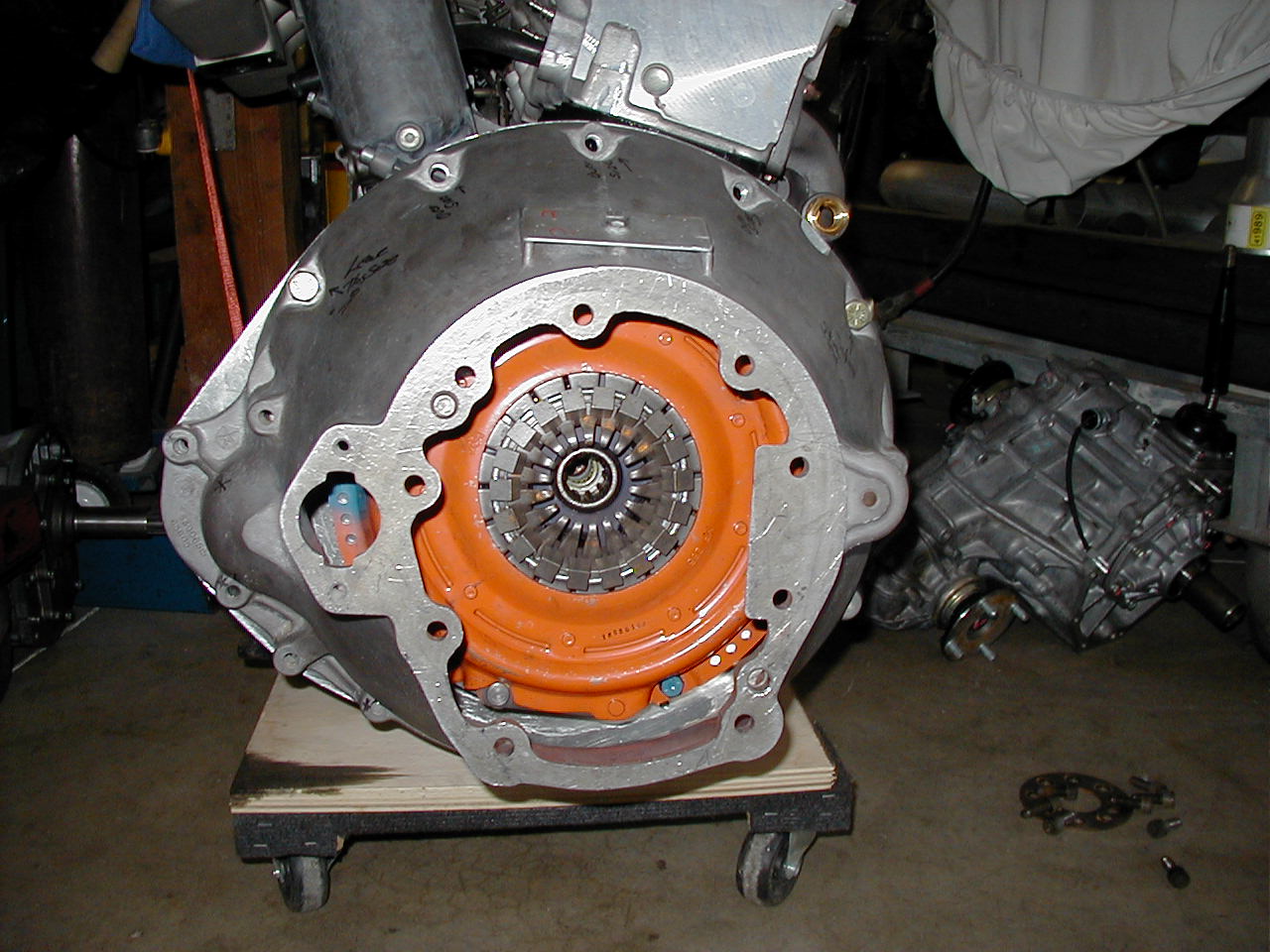

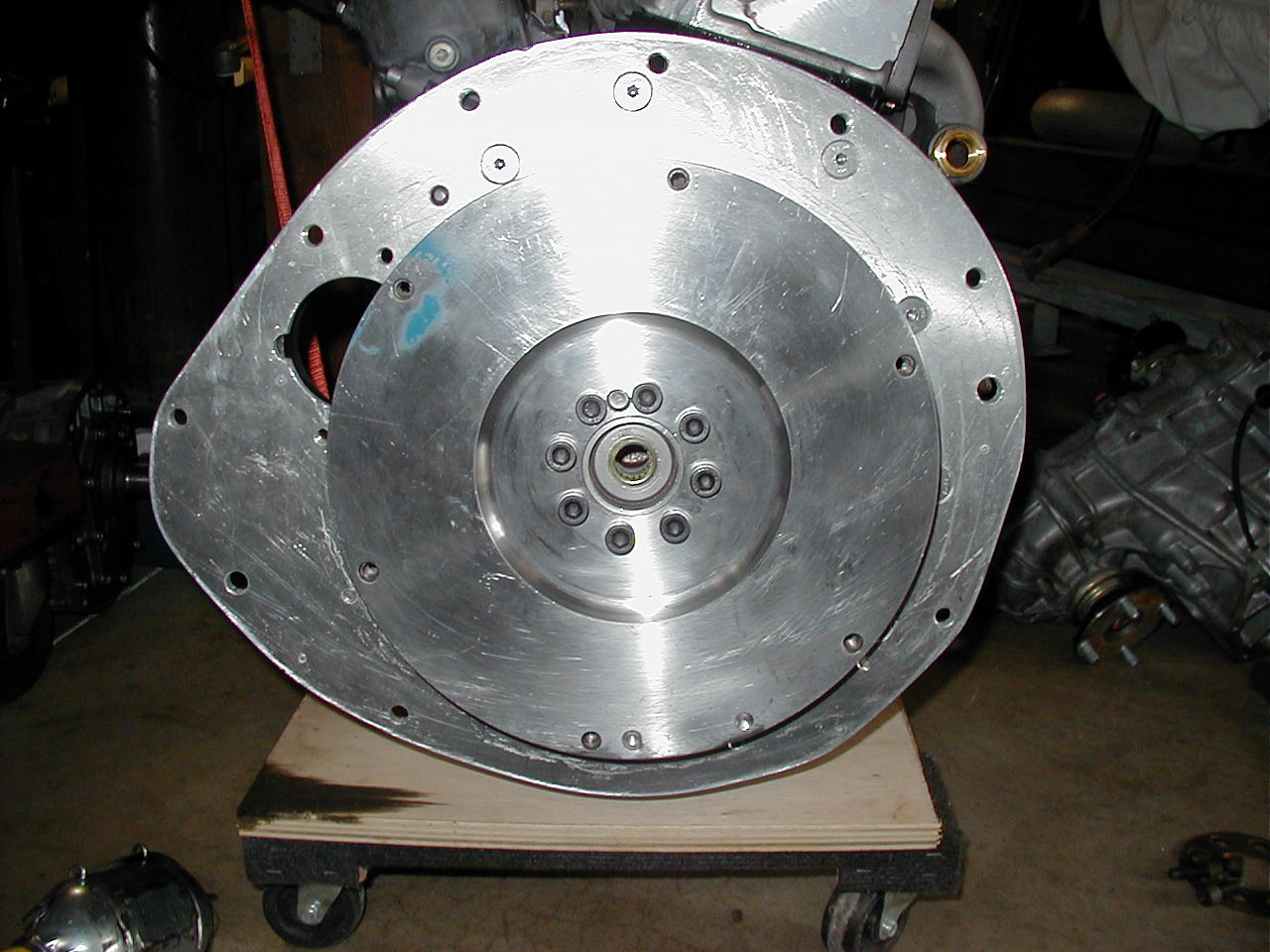

Some more progress pictures. Adapter plate for the AX-15 transmission (R150 Toyota) with a Jeep input shaft. Dakota bellhousing for a larger 10.5 clutch.

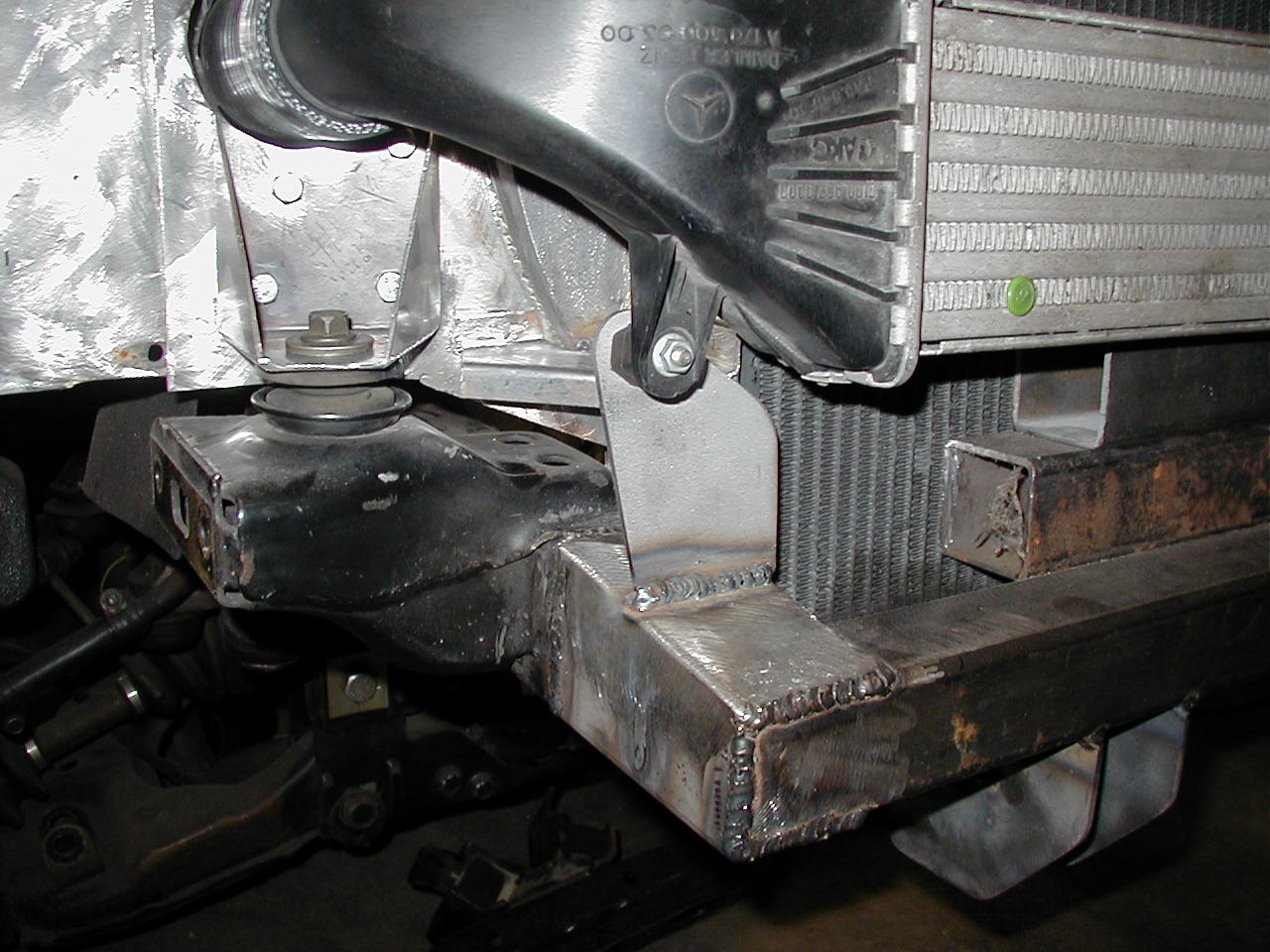

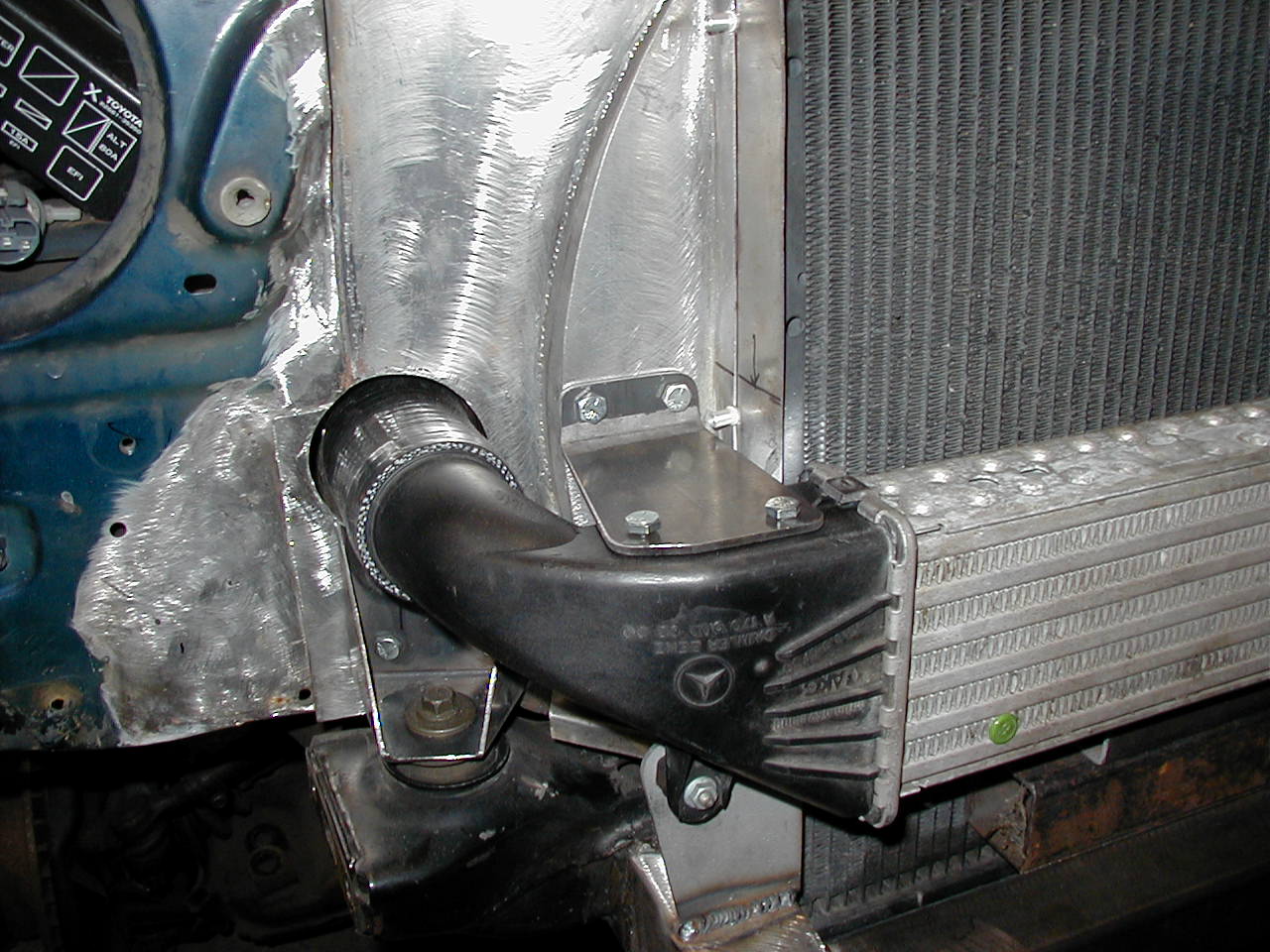

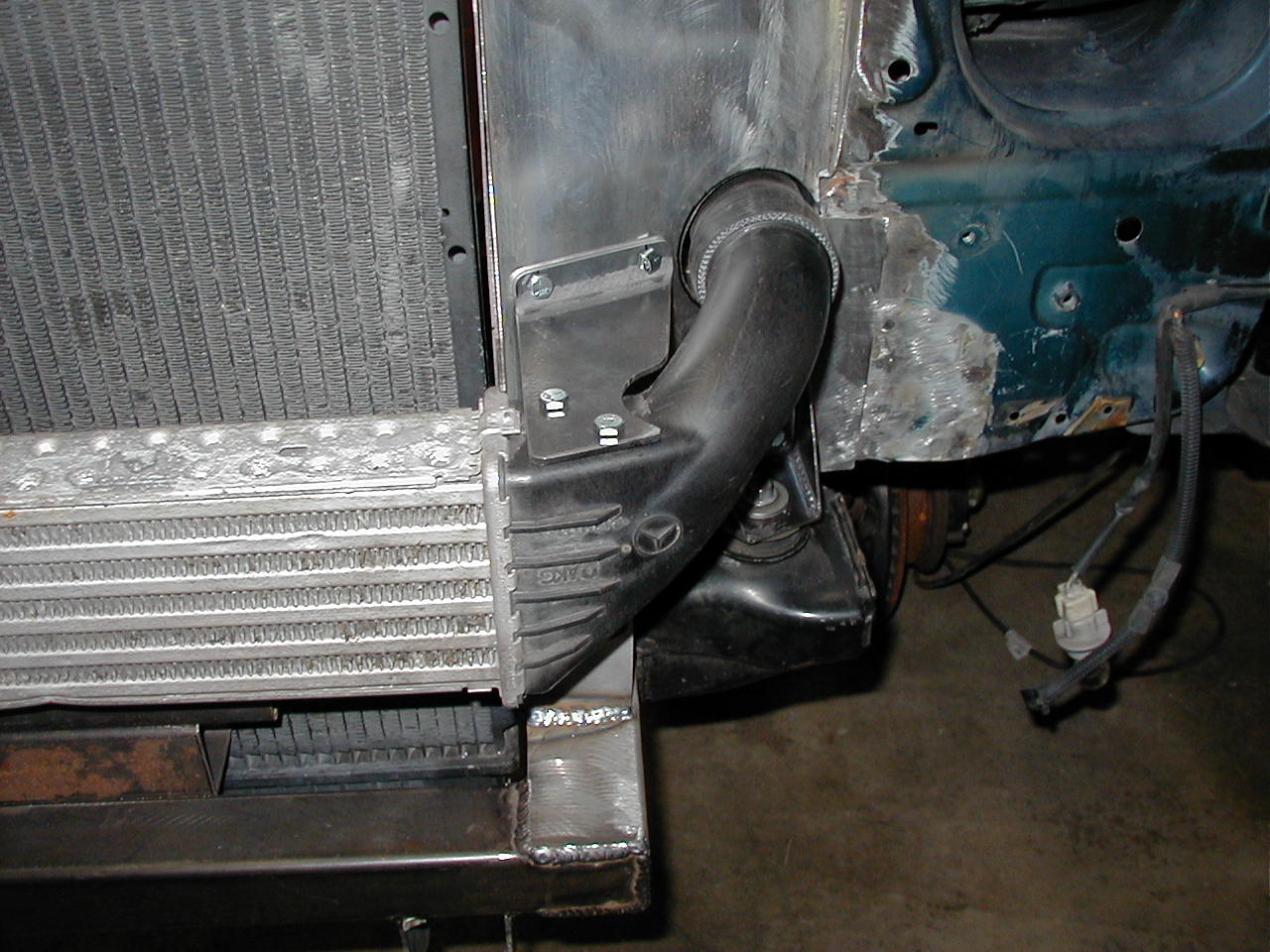

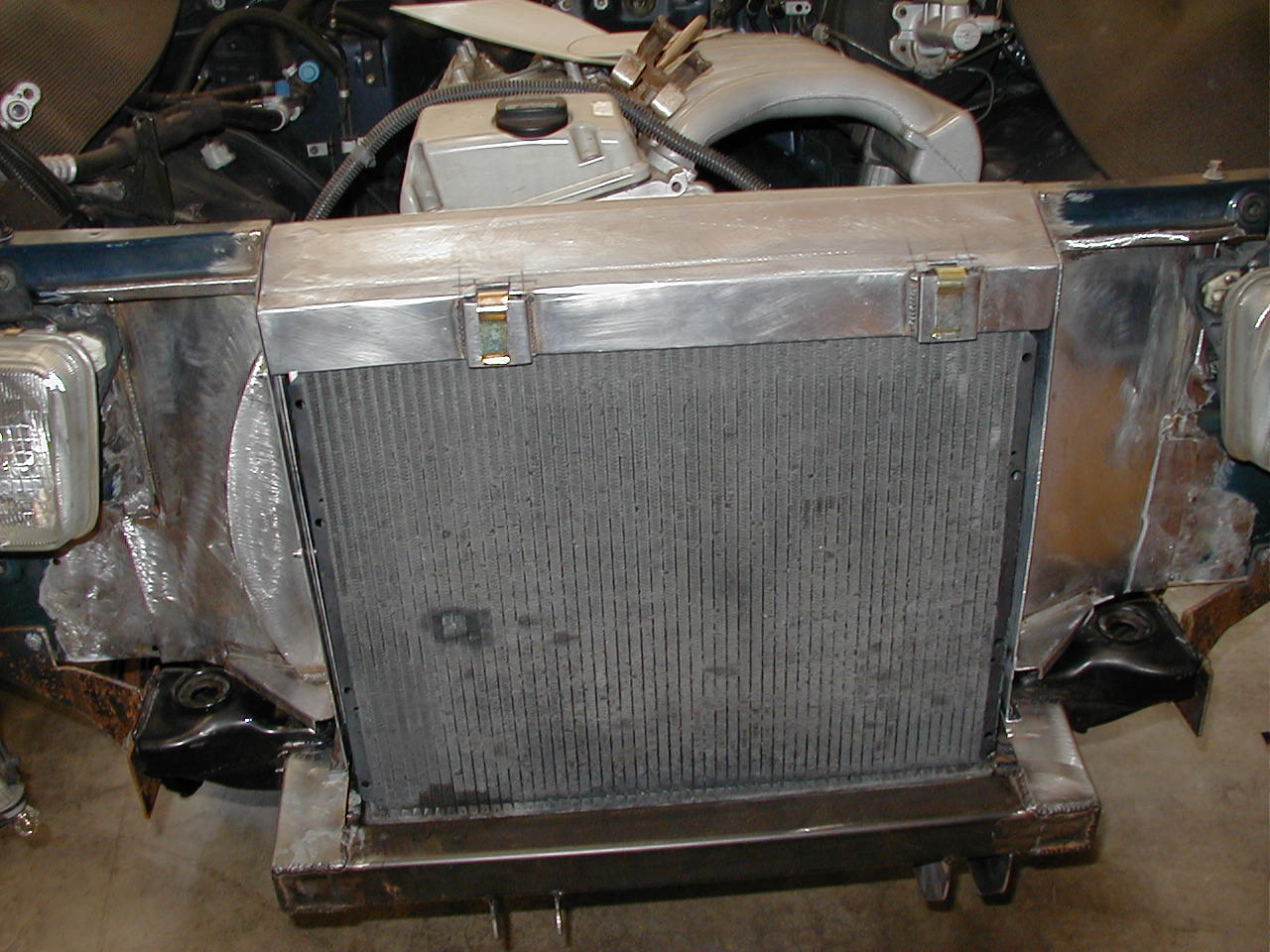

Intercooler and core support mounts.

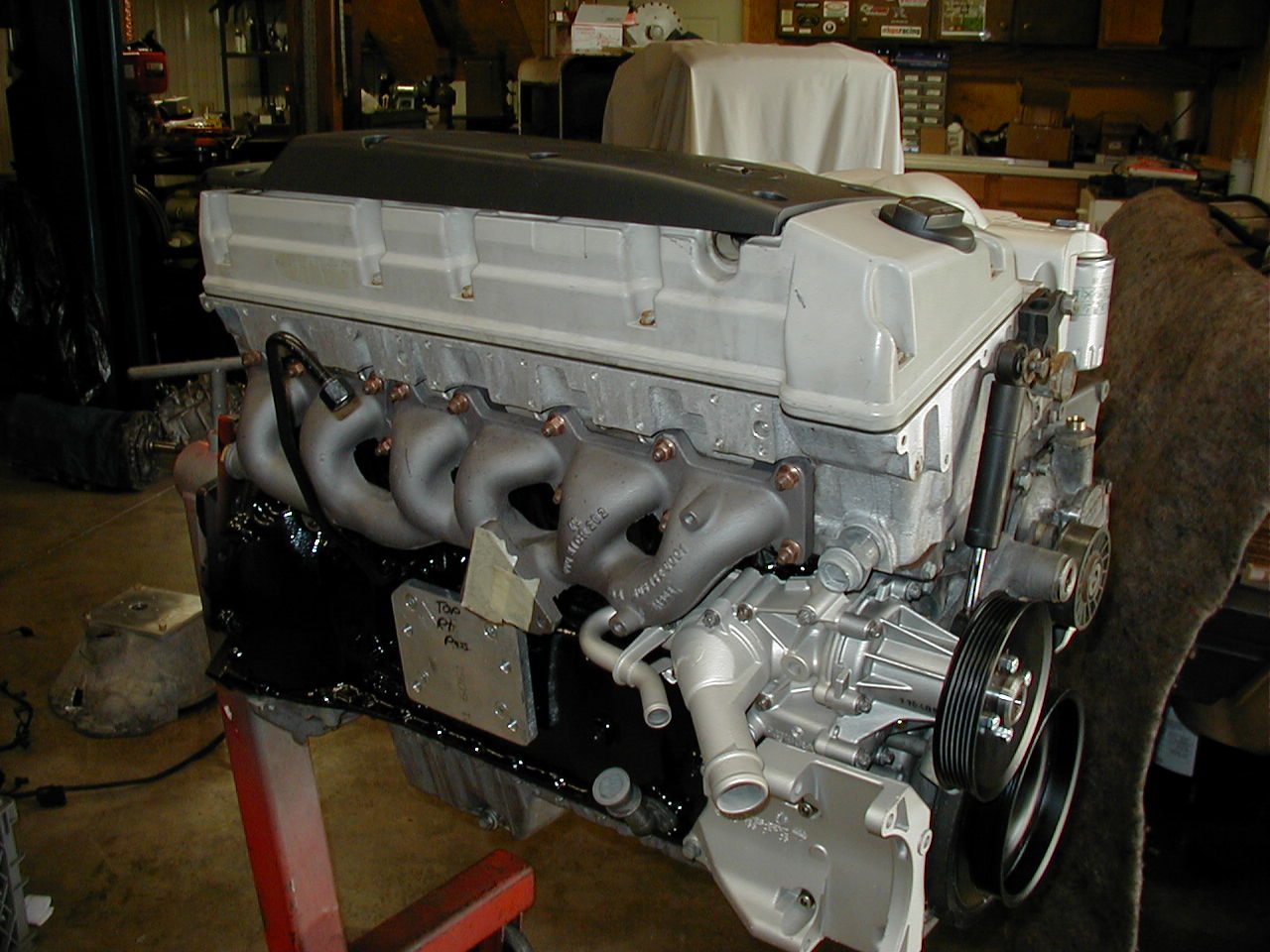

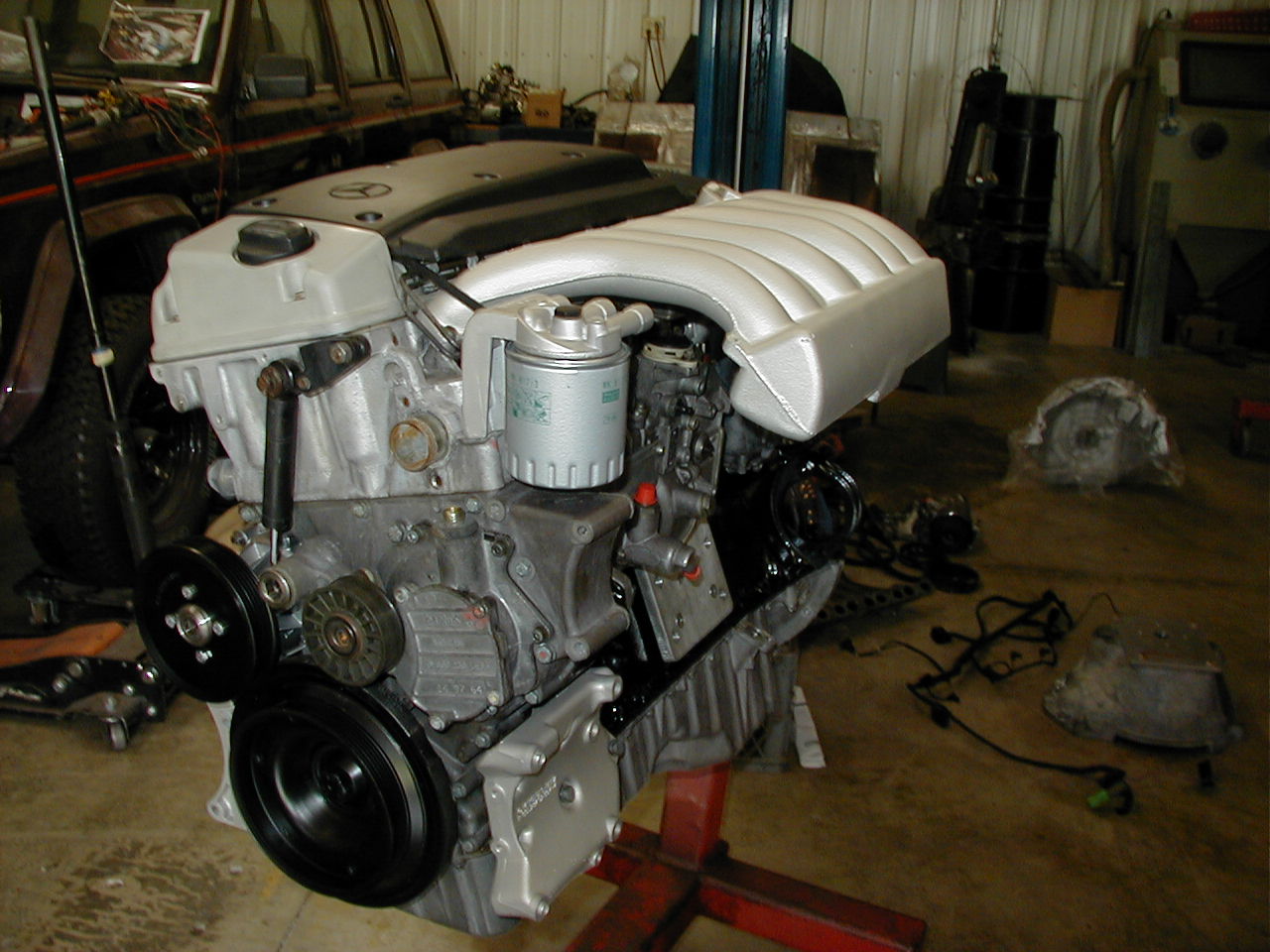

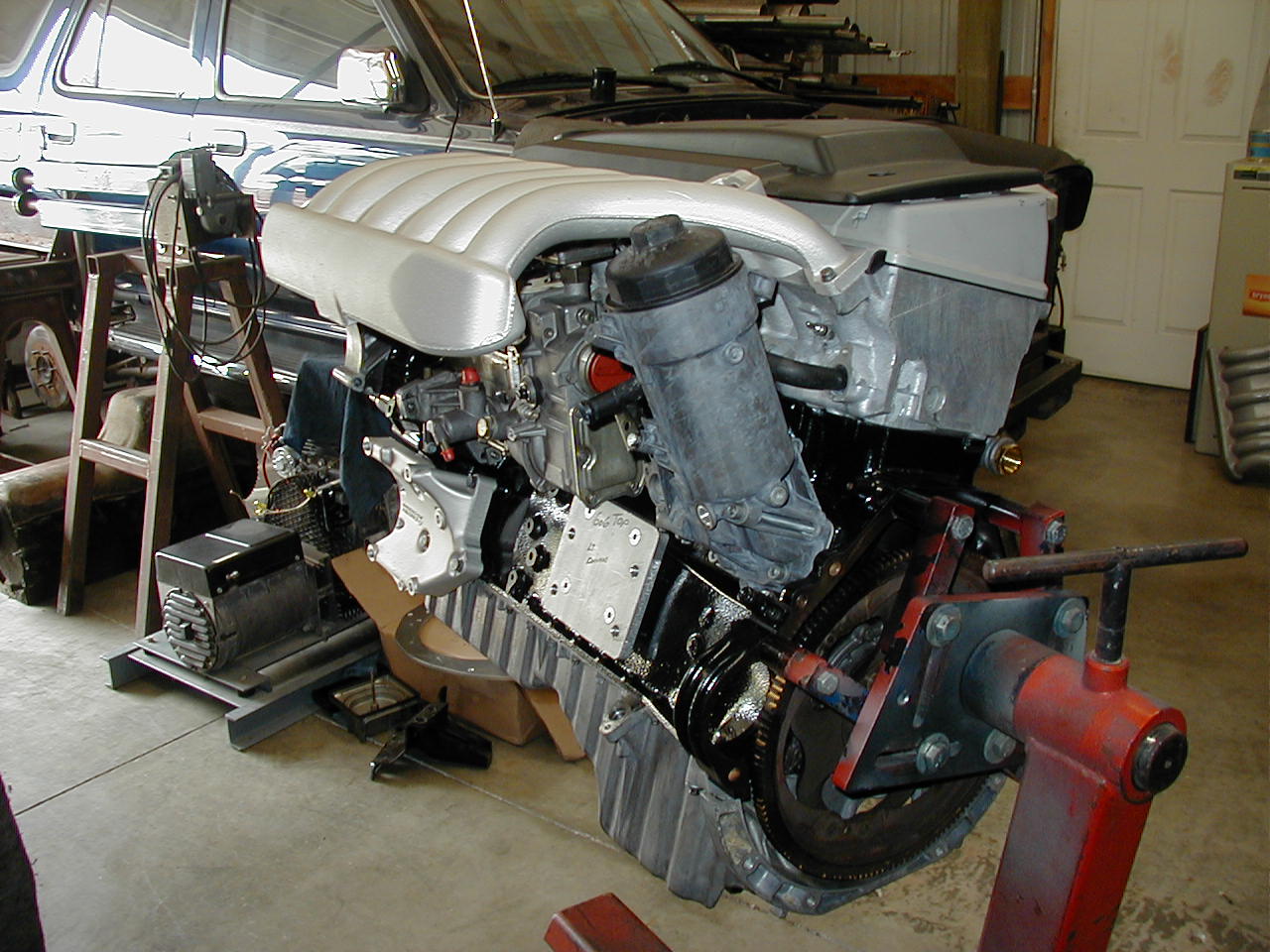

Detailed engine ready to install with OM 648 pan and OM 603 pump.
