08-21-2020, 12:43 PM #1

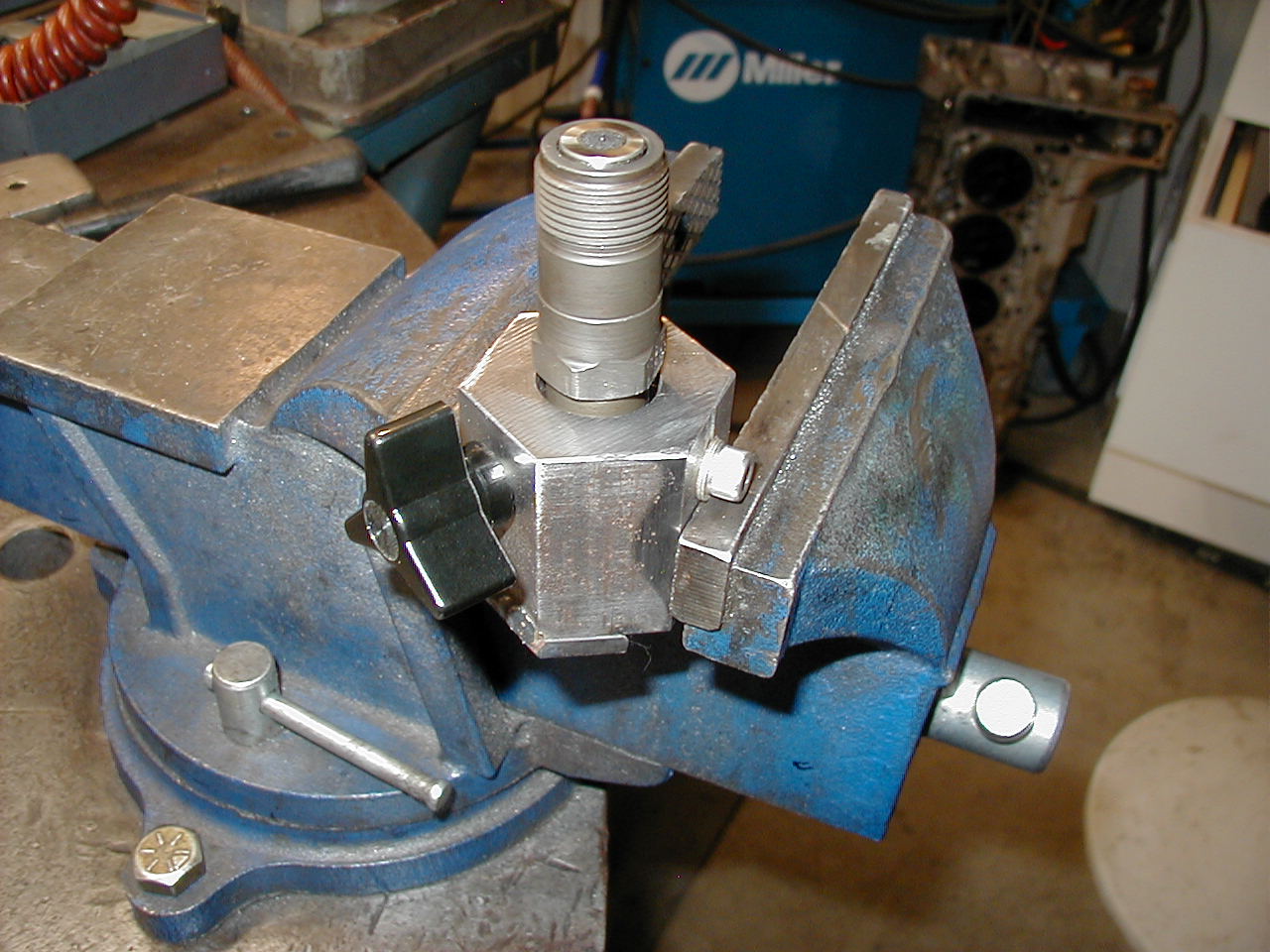

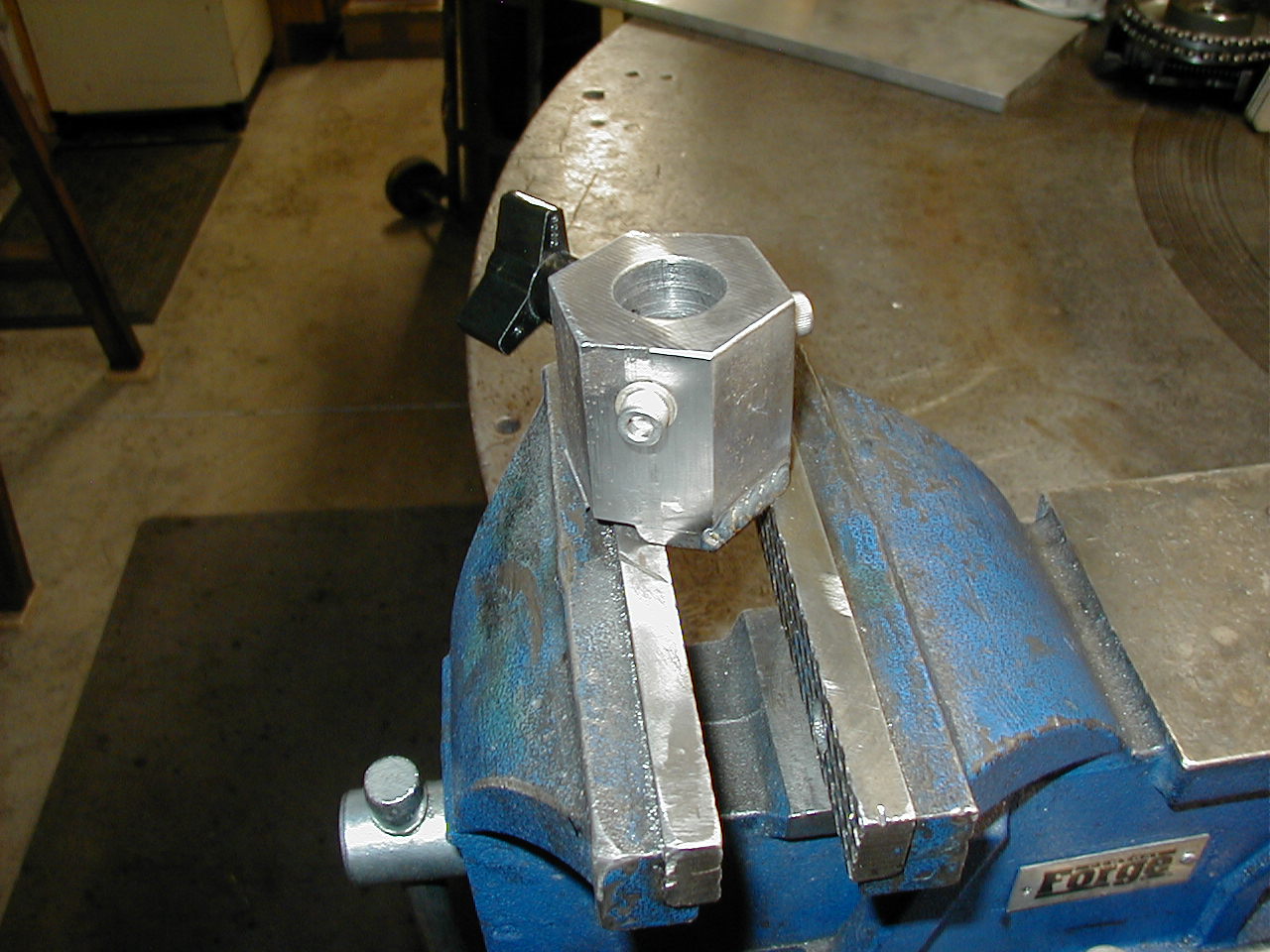

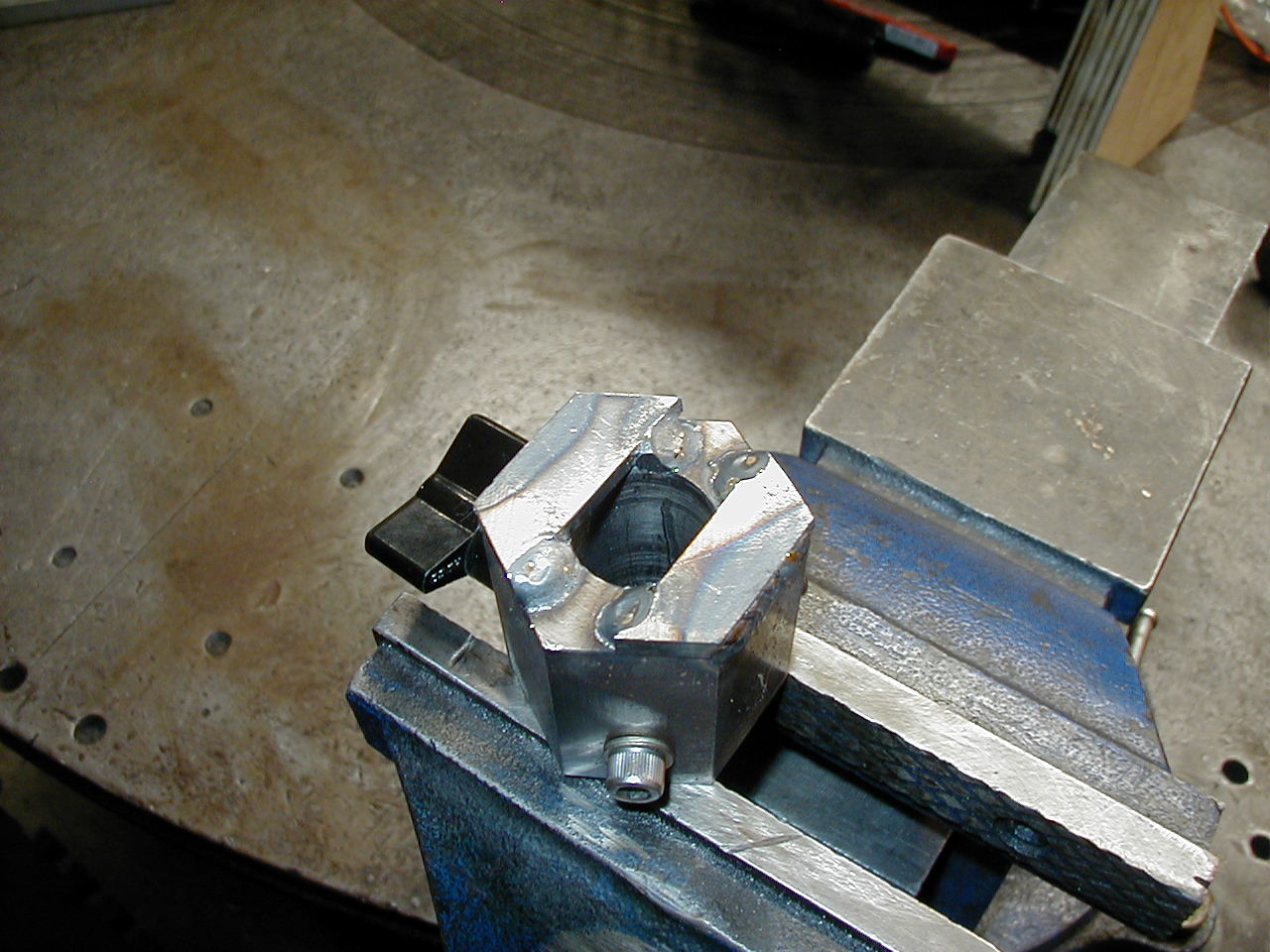

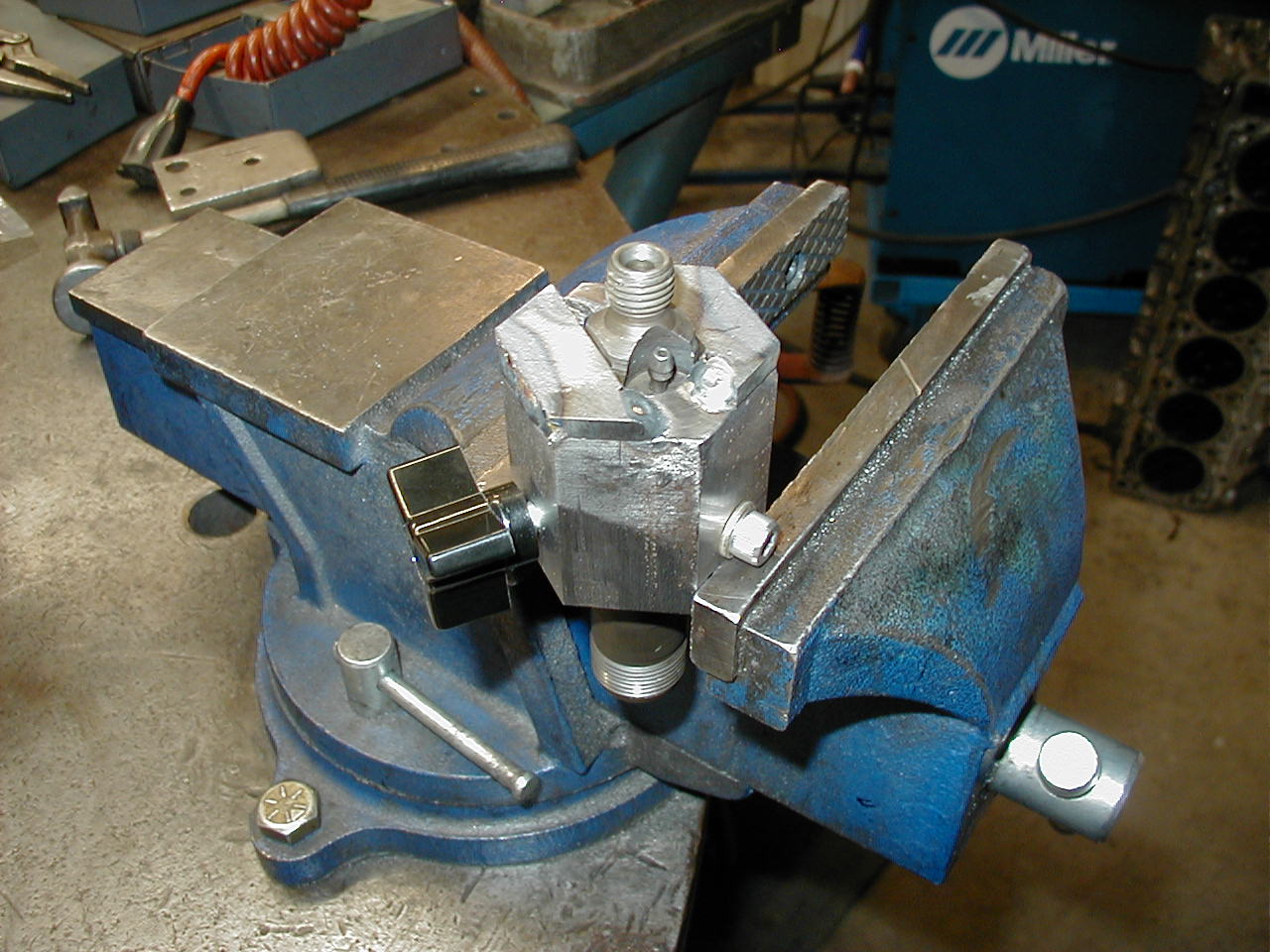

Just thought I would share a jig I made to work on the 606 IDI injectors. I always had an issue clamping them in a vice, I looked high and low for one that was already made no luck.
Attached Files
Image(s)

zeeman
08-21-2020, 12:43 PM #1

Just thought I would share a jig I made to work on the 606 IDI injectors. I always had an issue clamping them in a vice, I looked high and low for one that was already made no luck.

Attached Files
Image(s)


TBMY
Naturally-aspirated

13
09-07-2020, 11:30 AM #2
Nice one! Smile
TBMY
09-07-2020, 11:30 AM #2

Nice one! Smile
