Majesty78´s Majestic ;-)
Majesty78´s Majestic ;-)
I am very excited driving this car, even in stock condition, it doesnt really feel "underpowered", good response to throttle, quite quick shiftings of the AT and runs a straight 240km/H at WOT (Had to try it once*g*)
The only bad thing is, that the gear ratio is a little short, so if i want to increase topspeed, I´d have to rev it really high (What I actually dont like sustained...)
So in the next days I am going to sort out the little mechanical works, give her new breaks and a big service and then as first step make some decent software :-)
Regards, Alex

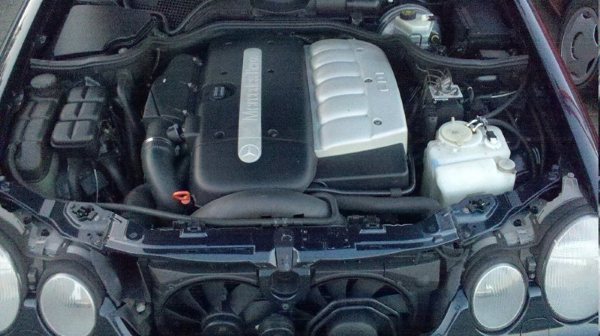

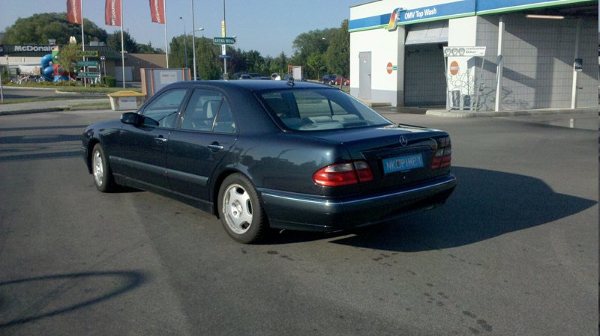

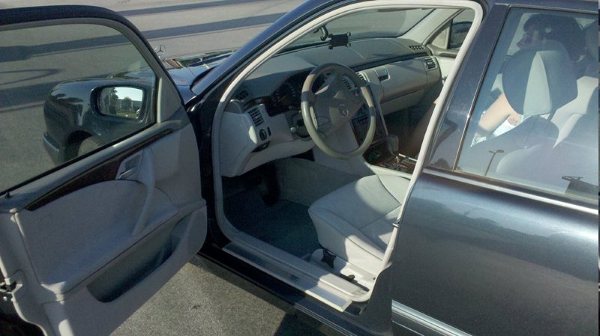

Picked it up last friday, like mentioned in the other thread, so here are some pictures:
I am very excited driving this car, even in stock condition, it doesnt really feel "underpowered", good response to throttle, quite quick shiftings of the AT and runs a straight 240km/H at WOT (Had to try it once*g*)
The only bad thing is, that the gear ratio is a little short, so if i want to increase topspeed, I´d have to rev it really high (What I actually dont like sustained...)
So in the next days I am going to sort out the little mechanical works, give her new breaks and a big service and then as first step make some decent software :-)
Regards, Alex
Its kind of annoying to know MB gave the world such a wonderful engine while the US was Diesel dry for 6 years.
ForcedInduction
08-25-2010, 06:45 PM
#4
Its it the OM613 or OM648?
Its kind of annoying to know MB gave the world such a wonderful engine while the US was Diesel dry for 6 years.
(08-25-2010, 06:45 PM)ForcedInduction Its kind of annoying to know MB gave the world such a wonderful engine while the US was Diesel dry for 6 years.I was under the impression that was due to California emissions?
230hp with a software upgrade. I just fainted.
1987 300D Sturmmachine
1991 300D Nearly Perfect
1985 300D Weekend/Camping/Dog car
1974 L508D Motoroam Monarch "NightMare"
OBK #42
(08-25-2010, 06:45 PM)ForcedInduction Its kind of annoying to know MB gave the world such a wonderful engine while the US was Diesel dry for 6 years.I was under the impression that was due to California emissions?
230hp with a software upgrade. I just fainted.
1987 300D Sturmmachine
1991 300D Nearly Perfect
1985 300D Weekend/Camping/Dog car
1974 L508D Motoroam Monarch "NightMare"
OBK #42
230hp/520Nm sholud be kind of "mild" tuning, its just 15% more power and 10% more torque.
Guess you could make 250/570 with stock hardware, I will try in the next weeks tweaking the mappings a little more...
Its an OM613, the OM648 was invented in the W211 first.
230hp/520Nm sholud be kind of "mild" tuning, its just 15% more power and 10% more torque.
Guess you could make 250/570 with stock hardware, I will try in the next weeks tweaking the mappings a little more...
Guess you could make 250/570 with stock hardware, I will try in the next weeks tweaking the mappings a little more...
Nice car low milage,
mine is a E320CDI Avantgarde
remaped for 250hp 600Nm stock settings ,EGR removed from maps
which software are you using for the remap,and wich turbo for possibel upgrade
regards nfj
230hp/520Nm sholud be kind of "mild" tuning, its just 15% more power and 10% more torque.
Guess you could make 250/570 with stock hardware, I will try in the next weeks tweaking the mappings a little more...
Nice car low milage,
mine is a E320CDI Avantgarde
remaped for 250hp 600Nm stock settings ,EGR removed from maps
which software are you using for the remap,and wich turbo for possibel upgrade
regards nfj
Before raising power I would like to mount an EGT, EMP and boost pressure gauge just to keep an eye on those values...
Have folow a thread from
http://www.mbworld.org/forums/diesel-for...mod-3.html
where a crasy Finnish guy rebuilding a 220cdi for near 300hp, interesting reading ?
have you looked into AMG nozzels ? or is it not nesseary for the 320cdi
I have mountet a hose for the boost presure but have not hat the time to maunt a gauge yet.
looking forward to see wath turbo you will mount to get 500hp
regards nfj
Before raising power I would like to mount an EGT, EMP and boost pressure gauge just to keep an eye on those values...
Have folow a thread from
http://www.mbworld.org/forums/diesel-for...mod-3.html
where a crasy Finnish guy rebuilding a 220cdi for near 300hp, interesting reading ? have you looked into AMG nozzels ?
or is it not nesseary for the 320cdi
I have mountet a hose for the boost presure but have not hat the time to maunt a gauge yet.
looking forward to see wath turbo you will mount to get 500hp
regards nfj
1987 300SDL 6spd manual om606.962 swap project
1985 300td euro 5spd wagon running
willbhere4u
02-08-2011, 09:39 PM #14mph or kph?
1987 300SDL 6spd manual om606.962 swap project
1985 300td euro 5spd wagon running
1987 300SDL 6spd manual om606.962 swap project
1985 300td euro 5spd wagon running
willbhere4u
02-09-2011, 12:28 PM #16that's still pretty darn quick!
1987 300SDL 6spd manual om606.962 swap project
1985 300td euro 5spd wagon running
![[Image: 2011-03-1217.02.55m7kj.jpg]](http://www.abload.de/image.php?img=2011-03-1217.02.55m7kj.jpg)
![[Image: 2011-03-15_17-19-47_647pmk.jpg]](http://www.abload.de/image.php?img=2011-03-15_17-19-47_647pmk.jpg)
1982 300D Turbo ... 3,6xxlbs, No fan, No AC, Hood Stack, No ALDA, No rear bumper and stuffed front, A/W Intercooled, Injectors by Greezer and HUGE Pre-Chambers with help from OM616 & Simpler=Better, Fuel Cranked up, 60 Trim Compressor wheel, EGT, EMP, Boost 50" Rigid Radius bar on roof Aux tank for a total of 48 Gal Of Diesel! Odyssey PC-1750 Battery in trunk, 27"x8.5"/R14 Maxxis BigHorn Mud Terrains, In June '14 issue of Off Road Mag
AX15 Jeep Trans swap in progress....
Captain America
03-15-2011, 03:27 PM #20Sexy!
1982 300D Turbo ... 3,6xxlbs, No fan, No AC, Hood Stack, No ALDA, No rear bumper and stuffed front, A/W Intercooled, Injectors by Greezer and HUGE Pre-Chambers with help from OM616 & Simpler=Better, Fuel Cranked up, 60 Trim Compressor wheel, EGT, EMP, Boost 50" Rigid Radius bar on roof Aux tank for a total of 48 Gal Of Diesel! Odyssey PC-1750 Battery in trunk, 27"x8.5"/R14 Maxxis BigHorn Mud Terrains, In June '14 issue of Off Road Mag
AX15 Jeep Trans swap in progress....
As you see on the picture above, its revving up to 4500rpm in 5th gear, making a little over 240km/h. (The speedo on these cars is quite accurate, GPS showed 243km/h).
But, even with 500hp it would not go faster because I dont want to rev it much higher tbh.
Rear diff ratio also cant be changed because then the whole TCU/ECU/CAN-Bus control gets f***ed up, causing limp mode :-(
Regards, Alex
The real downside of this car is the short gear ratio.
As you see on the picture above, its revving up to 4500rpm in 5th gear, making a little over 240km/h. (The speedo on these cars is quite accurate, GPS showed 243km/h).
But, even with 500hp it would not go faster because I dont want to rev it much higher tbh.
Rear diff ratio also cant be changed because then the whole TCU/ECU/CAN-Bus control gets f***ed up, causing limp mode :-(
Regards, Alex
1987 300D Sturmmachine
1991 300D Nearly Perfect
1985 300D Weekend/Camping/Dog car
1974 L508D Motoroam Monarch "NightMare"
OBK #42
Heh. If I hit 240km/h in any of my cars I will be quite happy. Although my need for speed days are quite long gone. My top was 167mph on a VFR.
1987 300D Sturmmachine
1991 300D Nearly Perfect
1985 300D Weekend/Camping/Dog car
1974 L508D Motoroam Monarch "NightMare"
OBK #42
Problem is to teach the tcu/ecu that there is a different gear ratio, with newer SG53 TCU its possible, but with my "old" SG52 TCU i am not sure.....:-((((
I see a little light at the end of the tunnel, MB 400CDI uses 2.4 gear ratio (Stock 2.65) in rear differential.
Problem is to teach the tcu/ecu that there is a different gear ratio, with newer SG53 TCU its possible, but with my "old" SG52 TCU i am not sure.....:-((((
Alex, very good looking e klase i must say.
Mb 1984 w201 om603 swap.
Mb 1986 w201 190E 2.3-16v
Mb 2004 w203 C230k
George3soccer
03-22-2011, 05:30 PM #25Winmutt- one of my first bikes were a vrf750. Great bikes.
Alex, very good looking e klase i must say.
Mb 1984 w201 om603 swap.
Mb 1986 w201 190E 2.3-16v
Mb 2004 w203 C230k
Very similar performance to my E320 cdi
. Did you rev it to 4600 rpm? Have you tried changing at 4000 rpm pulling the gear lever to the right? I find this better as above 4000 it runs out of oomph and it gets into the thick of the powerband when changing up. Holding 1300rpm on the brakes will launch better (0-100 in less than 7) , but i suppose that may put more stress on your transmission.
Very similar performance to my E320 cdi. Did you rev it to 4600 rpm? Have you tried changing at 4000 rpm pulling the gear lever to the right? I find this better as above 4000 it runs out of oomph and it gets into the thick of the powerband when changing up.
Holding 1300rpm on the brakes will launch better (0-100 in less than 7) , but i suppose that may put more stress on your transmission.
To avoid loosing the "oooomph" in upper rpm region we have raised the power at max. rpm.
Standard is 197hp@4200rpm, we hold 240hp up to 4400rpm.
Although I do have some issues with my ABS sensors on front axle since I own the car, therefor shifting is kind of muddy in higher speed regions especially over 100km/H (62mp/h) and cruise control only works up to 60km/H ( ~35mp/h)
This affects and spoils performance, so I have to find some time to sort it out in near future when i reman front brakes.
Regards, Alex
You've asked me to quick about how high it revvs before shifting, but I am quite sure it's about short before 4500rpm.
To avoid loosing the "oooomph" in upper rpm region we have raised the power at max. rpm.
Standard is 197hp@4200rpm, we hold 240hp up to 4400rpm.
Although I do have some issues with my ABS sensors on front axle since I own the car, therefor shifting is kind of muddy in higher speed regions especially over 100km/H (62mp/h) and cruise control only works up to 60km/H ( ~35mp/h)
This affects and spoils performance, so I have to find some time to sort it out in near future when i reman front brakes.
Regards, Alex
Before:
About 240hp/600Nm
0-200 ~ 26sec
After: (With a little help from a friend *g*)
Changed MAP sensor from 250kpa to 300kpa and changed software again
About 260-270hp/650Nm
0-200 ~ 23sec
Sure, this is no strict scientific kind of testing, temperature, fuel level and quality (standard 51cetan or "premium" high cetan diesel) and especially wind does affect the results, but at least I always use the same runway and direction, so its a accurate enough measuring for me to compare and verify any gains ;-)
Next step performance related must be an uprated intercooler, especially now when it gets warmer outside you clearly feel power dropping after some WOT runs, so I have to find some solution there. Unfortunaltely, there is not much room behind the bumper and the cutout in the front bumper isnt really bigger than the stock intercooler....:-(
Updates, non performance related:
Been at a friends MB workshop on saturday, and after some inspection, we came to the result, that the car will need a full respray, to many small ditches, scratches and dents and especially small rust nests would make a part-respray even more work than a complete one. So its going to be taken apart and respayed completly in autumn before winter comes...
So long,
Alex
Little Update performancewise:
Before:
About 240hp/600Nm
0-200 ~ 26sec
After: (With a little help from a friend *g*)
Changed MAP sensor from 250kpa to 300kpa and changed software again
About 260-270hp/650Nm
0-200 ~ 23sec
Sure, this is no strict scientific kind of testing, temperature, fuel level and quality (standard 51cetan or "premium" high cetan diesel) and especially wind does affect the results, but at least I always use the same runway and direction, so its a accurate enough measuring for me to compare and verify any gains ;-)
Next step performance related must be an uprated intercooler, especially now when it gets warmer outside you clearly feel power dropping after some WOT runs, so I have to find some solution there. Unfortunaltely, there is not much room behind the bumper and the cutout in the front bumper isnt really bigger than the stock intercooler....:-(
Updates, non performance related:
Been at a friends MB workshop on saturday, and after some inspection, we came to the result, that the car will need a full respray, to many small ditches, scratches and dents and especially small rust nests would make a part-respray even more work than a complete one. So its going to be taken apart and respayed completly in autumn before winter comes...
So long,
Alex
Been really funny, car worked fine, transmission worked well but after ~20 laps the brake pedal became softer and softer.
The course is quite short and very curvy, so not really a highspeed track, and it has been humidified to reduce noise.
Here two videos:
Mercedes:
Ibiza:
Laptimes of both cars is quite equal, which I think is good if you compare a big, heavy Mercedes which is not really a "handy" track car, to a lightweight, compact Ibiza....
Regards, Alex
Mercedes Benz W210 E-Class 320CDI, lowered 2.5", 18" AMG wheels, Decat, EGR removed, Tumble flaps removed, C30 AMG injectors, 400kpa MAP, Custom GT2566XTV turbo, SW tweaked to 300+hp/750Nm
Been on a track day today with my girlfriend and both cars, mine and her Seat Ibiza Cupra 1.8T.
Been really funny, car worked fine, transmission worked well but after ~20 laps the brake pedal became softer and softer.
The course is quite short and very curvy, so not really a highspeed track, and it has been humidified to reduce noise.
Here two videos:
Mercedes:
Ibiza:
Laptimes of both cars is quite equal, which I think is good if you compare a big, heavy Mercedes which is not really a "handy" track car, to a lightweight, compact Ibiza....
Regards, Alex
Mercedes Benz W210 E-Class 320CDI, lowered 2.5", 18" AMG wheels, Decat, EGR removed, Tumble flaps removed, C30 AMG injectors, 400kpa MAP, Custom GT2566XTV turbo, SW tweaked to 300+hp/750Nm
New software from mr.x *g*
Remember car is still stock hardware except decat.
0-100 kph (62mph) ~ 6.3sec.
0-200 kph (124mph) ~ 20.5sec.
60-140 kph (37-87mph) ~ 7sec.
Not to bad for an "old" oilburner i think :-)
Mercedes Benz W210 E-Class 320CDI, lowered 2.5", 18" AMG wheels, Decat, EGR removed, Tumble flaps removed, C30 AMG injectors, 400kpa MAP, Custom GT2566XTV turbo, SW tweaked to 300+hp/750Nm
Another update:
New software from mr.x *g*
Remember car is still stock hardware except decat.
0-100 kph (62mph) ~ 6.3sec.
0-200 kph (124mph) ~ 20.5sec.
60-140 kph (37-87mph) ~ 7sec.
Not to bad for an "old" oilburner i think :-)
Mercedes Benz W210 E-Class 320CDI, lowered 2.5", 18" AMG wheels, Decat, EGR removed, Tumble flaps removed, C30 AMG injectors, 400kpa MAP, Custom GT2566XTV turbo, SW tweaked to 300+hp/750Nm
Best run 14.422@162kph (100mph)
I like :-)
Mercedes Benz W210 E-Class 320CDI, lowered 2.5", 18" AMG wheels, Decat, EGR removed, Tumble flaps removed, C30 AMG injectors, 400kpa MAP, Custom GT2566XTV turbo, SW tweaked to 300+hp/750Nm
1/4Mile results from sunday are online
Best run 14.422@162kph (100mph)
I like :-)
Mercedes Benz W210 E-Class 320CDI, lowered 2.5", 18" AMG wheels, Decat, EGR removed, Tumble flaps removed, C30 AMG injectors, 400kpa MAP, Custom GT2566XTV turbo, SW tweaked to 300+hp/750Nm
Mercedes Benz W210 E-Class 320CDI, lowered 2.5", 18" AMG wheels, Decat, EGR removed, Tumble flaps removed, C30 AMG injectors, 400kpa MAP, Custom GT2566XTV turbo, SW tweaked to 300+hp/750Nm
Thats a compressor wheel from a ASEA BROWN BOVERI gas turbine ;-) IIRC
Mercedes Benz W210 E-Class 320CDI, lowered 2.5", 18" AMG wheels, Decat, EGR removed, Tumble flaps removed, C30 AMG injectors, 400kpa MAP, Custom GT2566XTV turbo, SW tweaked to 300+hp/750Nm
![[Image: img-20111003-wa0002vd59.jpg]](http://www.abload.de/image.php?img=img-20111003-wa0002vd59.jpg)
![[Image: img-20111003-wa0005ycjk.jpg]](http://www.abload.de/image.php?img=img-20111003-wa0005ycjk.jpg)
![[Image: img-20111003-wa0006ncnp.jpg]](http://www.abload.de/image.php?img=img-20111003-wa0006ncnp.jpg)
![[Image: img-20111015-wa0001exbt.jpg]](http://www.abload.de/image.php?img=img-20111015-wa0001exbt.jpg)
![[Image: img-20111015-wa0002xb7d.jpg]](http://www.abload.de/image.php?img=img-20111015-wa0002xb7d.jpg)
![[Image: img-20111015-wa0006sbwl.jpg]](http://www.abload.de/image.php?img=img-20111015-wa0006sbwl.jpg)
![[Image: img-20111015-wa00055zbl.jpg]](http://www.abload.de/image.php?img=img-20111015-wa00055zbl.jpg)
In the meanwhile, I pulled the turbo to remanufacture it:
![[Image: 2011-09-17_13-28-13_84wpgm.jpg]](http://www.abload.de/image.php?img=2011-09-17_13-28-13_84wpgm.jpg)
Finished:
![[Image: 2011-09-18_13-17-24_39zr7w.jpg]](http://www.abload.de/image.php?img=2011-09-18_13-17-24_39zr7w.jpg)
![[Image: 2011-09-18_13-17-36_401q2j.jpg]](http://www.abload.de/image.php?img=2011-09-18_13-17-36_401q2j.jpg)
![[Image: 2011-09-18_13-16-14_498qq4.jpg]](http://www.abload.de/image.php?img=2011-09-18_13-16-14_498qq4.jpg)
![[Image: 2011-09-18_13-16-23_37up04.jpg]](http://www.abload.de/image.php?img=2011-09-18_13-16-23_37up04.jpg)
![[Image: 2011-09-18_13-17-00_75mq41.jpg]](http://www.abload.de/image.php?img=2011-09-18_13-17-00_75mq41.jpg)
Balancing result:
Tolerances from Garrett are 0.65g up to 90.000rpm and 2g above 90.000. Far, faaaar away from these tolerances, in positive direction ;-)
![[Image: 2011-09-13_13-16-26_91moai.jpg]](http://www.abload.de/image.php?img=2011-09-13_13-16-26_91moai.jpg)
Even grinding the exhaust manifold (On a cyl. head grinding machine*g*)
![[Image: 2011-09-19_07-48-04_38jp5k.jpg]](http://www.abload.de/image.php?img=2011-09-19_07-48-04_38jp5k.jpg)
Regards, Alex
Mercedes Benz W210 E-Class 320CDI, lowered 2.5", 18" AMG wheels, Decat, EGR removed, Tumble flaps removed, C30 AMG injectors, 400kpa MAP, Custom GT2566XTV turbo, SW tweaked to 300+hp/750Nm
Little update on body....
In the meanwhile, I pulled the turbo to remanufacture it:
Finished:
Balancing result:
Tolerances from Garrett are 0.65g up to 90.000rpm and 2g above 90.000. Far, faaaar away from these tolerances, in positive direction ;-)
Even grinding the exhaust manifold (On a cyl. head grinding machine*g*)
Regards, Alex
Mercedes Benz W210 E-Class 320CDI, lowered 2.5", 18" AMG wheels, Decat, EGR removed, Tumble flaps removed, C30 AMG injectors, 400kpa MAP, Custom GT2566XTV turbo, SW tweaked to 300+hp/750Nm
please keep us updated thanks for the pics
1987 300SDL 6spd manual om606.962 swap project
1985 300td euro 5spd wagon running
willbhere4u
10-17-2011, 02:41 PM #36Very cool do you have all of these machines at you disposal? that's some serious stuff there
please keep us updated thanks for the pics
1987 300SDL 6spd manual om606.962 swap project
1985 300td euro 5spd wagon running
Yes, I do have access to all kinds of machines, balancing rig, grinding machines, cnc mills and lathes....
Only bodywork is done by a friend of mine, I am more the mechanics guy, overhauling turbos and making custom turbos is part of my hobby ;-)
Regards, Alex
Mercedes Benz W210 E-Class 320CDI, lowered 2.5", 18" AMG wheels, Decat, EGR removed, Tumble flaps removed, C30 AMG injectors, 400kpa MAP, Custom GT2566XTV turbo, SW tweaked to 300+hp/750Nm
Thanks for your comment :-)
Yes, I do have access to all kinds of machines, balancing rig, grinding machines, cnc mills and lathes....
Only bodywork is done by a friend of mine, I am more the mechanics guy, overhauling turbos and making custom turbos is part of my hobby ;-)
Regards, Alex
Mercedes Benz W210 E-Class 320CDI, lowered 2.5", 18" AMG wheels, Decat, EGR removed, Tumble flaps removed, C30 AMG injectors, 400kpa MAP, Custom GT2566XTV turbo, SW tweaked to 300+hp/750Nm
1987 300SDL 6spd manual om606.962 swap project
1985 300td euro 5spd wagon running
willbhere4u
10-17-2011, 11:16 PM #38very cool! I would love to be able to balance my own part's
1987 300SDL 6spd manual om606.962 swap project
1985 300td euro 5spd wagon running
Power window left rear was a little broken:
![[Image: img-20111117-wa00083iucw.jpg]](http://www.abload.de/image.php?img=img-20111117-wa00083iucw.jpg)
Searched the leak in A/C, and found a broken A/C line, PITA to swap the line....
![[Image: img-20111117-wa0009xuum0.jpg]](http://www.abload.de/image.php?img=img-20111117-wa0009xuum0.jpg)
Fog light on left side did not work, put new electric lines, works now.
At the bodyworks:
Preowner seemed not to be very professional, paintjob on roof without removing the aerial:
![[Image: img-20111115-wa0001ioulq.jpg]](http://www.abload.de/image.php?img=img-20111115-wa0001ioulq.jpg)
So had to grind the whole roof also:
![[Image: img-20111115-wa0002xpun3.jpg]](http://www.abload.de/image.php?img=img-20111115-wa0002xpun3.jpg)
![[Image: img-20111115-wa0000gfubl.jpg]](http://www.abload.de/image.php?img=img-20111115-wa0000gfubl.jpg)
Trunk lid was to damaged from corrosion, so had to get a new one...
![[Image: img-20111118-wa0014n0ui9.jpg]](http://www.abload.de/image.php?img=img-20111118-wa0014n0ui9.jpg)
Rear bumper had some missing paint and dents, so fixed that one also:
![[Image: img-20111115-wa0015exu8m.jpg]](http://www.abload.de/image.php?img=img-20111115-wa0015exu8m.jpg)
Primered front hood:
![[Image: img-20111115-wa0016rzuvv.jpg]](http://www.abload.de/image.php?img=img-20111115-wa0016rzuvv.jpg)
Off it goes to the MB worhshop for paintjob....
![[Image: img-20111118-wa0000dtufz.jpg]](http://www.abload.de/image.php?img=img-20111118-wa0000dtufz.jpg)
Preparing for paintjob:
![[Image: img-20111118-wa0013fcub0.jpg]](http://www.abload.de/image.php?img=img-20111118-wa0013fcub0.jpg)
DO IT!:
![[Image: img-20111118-wa0006kyuao.jpg]](http://www.abload.de/image.php?img=img-20111118-wa0006kyuao.jpg)
![[Image: img-20111118-wa0011k5u5i.jpg]](http://www.abload.de/image.php?img=img-20111118-wa0011k5u5i.jpg)
Hopefully it will be reassembled and all done until next saturday, I have been without my car now since 12th of semptember....
Regards, Alex
Mercedes Benz W210 E-Class 320CDI, lowered 2.5", 18" AMG wheels, Decat, EGR removed, Tumble flaps removed, C30 AMG injectors, 400kpa MAP, Custom GT2566XTV turbo, SW tweaked to 300+hp/750Nm
Update on body work and mechanic fixes:
Power window left rear was a little broken:
Searched the leak in A/C, and found a broken A/C line, PITA to swap the line....
Fog light on left side did not work, put new electric lines, works now.
At the bodyworks:
Preowner seemed not to be very professional, paintjob on roof without removing the aerial:
So had to grind the whole roof also:
Trunk lid was to damaged from corrosion, so had to get a new one...
Rear bumper had some missing paint and dents, so fixed that one also:
Primered front hood:
Off it goes to the MB worhshop for paintjob....
Preparing for paintjob:
DO IT!:
Hopefully it will be reassembled and all done until next saturday, I have been without my car now since 12th of semptember....
Regards, Alex
Mercedes Benz W210 E-Class 320CDI, lowered 2.5", 18" AMG wheels, Decat, EGR removed, Tumble flaps removed, C30 AMG injectors, 400kpa MAP, Custom GT2566XTV turbo, SW tweaked to 300+hp/750Nm
Additional the wheel arches got rollered to make a little more space for the wheels and the "elegance" frontgrill was swapped to a "Avantgarde" grill.
SatNav ist wotking perfect now.
![[Image: 2011-12-1312.24.34h5xpd.jpg]](http://www.abload.de/image.php?img=2011-12-1312.24.34h5xpd.jpg)
![[Image: 2011-12-1312.24.47tzyue.jpg]](http://www.abload.de/image.php?img=2011-12-1312.24.47tzyue.jpg)
![[Image: 2011-12-1312.25.07kuaaj.jpg]](http://www.abload.de/image.php?img=2011-12-1312.25.07kuaaj.jpg)
![[Image: 2011-12-1312.25.30m3z8d.jpg]](http://www.abload.de/image.php?img=2011-12-1312.25.30m3z8d.jpg)
![[Image: 2011-12-1312.25.53n6yi4.jpg]](http://www.abload.de/image.php?img=2011-12-1312.25.53n6yi4.jpg)
![[Image: 2011-12-1312.24.23t8bg0.jpg]](http://www.abload.de/image.php?img=2011-12-1312.24.23t8bg0.jpg)
![[Image: 2011-12-1312.28.0167ziz.jpg]](http://www.abload.de/image.php?img=2011-12-1312.28.0167ziz.jpg)
![[Image: 2011-12-1312.26.3947lts.jpg]](http://www.abload.de/image.php?img=2011-12-1312.26.3947lts.jpg)
![[Image: 2011-12-1312.27.023xxfw.jpg]](http://www.abload.de/image.php?img=2011-12-1312.27.023xxfw.jpg)
![[Image: 2011-12-1312.27.46febmg.jpg]](http://www.abload.de/image.php?img=2011-12-1312.27.46febmg.jpg)
![[Image: 2011-12-1513.11.435bla2.jpg]](http://www.abload.de/image.php?img=2011-12-1513.11.435bla2.jpg)
![[Image: 2011-12-1511.47.297taft.jpg]](http://www.abload.de/image.php?img=2011-12-1511.47.297taft.jpg)
In the meantime I also received the high flow compressor wheels and started workiing on the oem GT2359V turbo to fit the wheel on it.
Here some comparison pictures GT2359V wheel vs. 62/65 extended tip wheel:
![[Image: 2012-01-0312.16.34bwzl8.jpg]](http://www.abload.de/image.php?img=2012-01-0312.16.34bwzl8.jpg)
![[Image: 2012-01-0312.16.06ouzyj.jpg]](http://www.abload.de/image.php?img=2012-01-0312.16.06ouzyj.jpg)
![[Image: 2012-01-0312.17.4247ysc.jpg]](http://www.abload.de/image.php?img=2012-01-0312.17.4247ysc.jpg)
Here you see the difference between standard and extended tip wheel on exducer diameter of the wheel:
![[Image: 2012-01-0312.17.19voljp.jpg]](http://www.abload.de/image.php?img=2012-01-0312.17.19voljp.jpg)
As the standard wheel is just a "superback" wheel and the upgrgade wheel is a "deep superback, I had to machine the backside of the new wheel to meet up with the backplate. Removed 1.5mm from backside on turning lathe:
![[Image: 2012-01-0307.39.36adlk4.jpg]](http://www.abload.de/image.php?img=2012-01-0307.39.36adlk4.jpg)
Here you see the gap between backplate and wheel:
![[Image: 2012-01-0307.40.07pax6s.jpg]](http://www.abload.de/image.php?img=2012-01-0307.40.07pax6s.jpg)
Ready:
![[Image: 2012-01-0410.00.37dezip.jpg]](http://www.abload.de/image.php?img=2012-01-0410.00.37dezip.jpg)
Center housing and rotating assembly (CHRA) completed:
The backplate behind the wheel has also been machined to accept the bigger wheel.
![[Image: 2012-01-0709.24.04ml18q.jpg]](http://www.abload.de/image.php?img=2012-01-0709.24.04ml18q.jpg)
![[Image: 2012-01-0709.24.27bs4kg.jpg]](http://www.abload.de/image.php?img=2012-01-0709.24.27bs4kg.jpg)
![[Image: 2012-01-0709.24.53zm1r9.jpg]](http://www.abload.de/image.php?img=2012-01-0709.24.53zm1r9.jpg)
Cleaned up VNT mechanics and reassembled it:
![[Image: 2012-01-0709.59.409iw3w.jpg]](http://www.abload.de/image.php?img=2012-01-0709.59.409iw3w.jpg)
Short video of VNT function:
Then made a DRY shaft play test to evaluate the minimum gap between compressor wheel and compressor housing. Shaft play is about 0.3mm so I will make gap to 0.5mm, stock is between 0.65-0.8mm
Next week I have to finish the compressor housing machining and then the turbo will be ready to go ;-)
Regards, Alex
Mercedes Benz W210 E-Class 320CDI, lowered 2.5", 18" AMG wheels, Decat, EGR removed, Tumble flaps removed, C30 AMG injectors, 400kpa MAP, Custom GT2566XTV turbo, SW tweaked to 300+hp/750Nm
Paintjob is finished and several mecahnical/electrical failures are cured.
Additional the wheel arches got rollered to make a little more space for the wheels and the "elegance" frontgrill was swapped to a "Avantgarde" grill.
SatNav ist wotking perfect now.
In the meantime I also received the high flow compressor wheels and started workiing on the oem GT2359V turbo to fit the wheel on it.
Here some comparison pictures GT2359V wheel vs. 62/65 extended tip wheel:
Here you see the difference between standard and extended tip wheel on exducer diameter of the wheel:
As the standard wheel is just a "superback" wheel and the upgrgade wheel is a "deep superback, I had to machine the backside of the new wheel to meet up with the backplate. Removed 1.5mm from backside on turning lathe:
Here you see the gap between backplate and wheel:
Ready:
Center housing and rotating assembly (CHRA) completed:
The backplate behind the wheel has also been machined to accept the bigger wheel.
Cleaned up VNT mechanics and reassembled it:
Short video of VNT function:
Then made a DRY shaft play test to evaluate the minimum gap between compressor wheel and compressor housing. Shaft play is about 0.3mm so I will make gap to 0.5mm, stock is between 0.65-0.8mm
Next week I have to finish the compressor housing machining and then the turbo will be ready to go ;-)
Regards, Alex
Mercedes Benz W210 E-Class 320CDI, lowered 2.5", 18" AMG wheels, Decat, EGR removed, Tumble flaps removed, C30 AMG injectors, 400kpa MAP, Custom GT2566XTV turbo, SW tweaked to 300+hp/750Nm
1982 300D Turbo ... 3,6xxlbs, No fan, No AC, Hood Stack, No ALDA, No rear bumper and stuffed front, A/W Intercooled, Injectors by Greezer and HUGE Pre-Chambers with help from OM616 & Simpler=Better, Fuel Cranked up, 60 Trim Compressor wheel, EGT, EMP, Boost 50" Rigid Radius bar on roof Aux tank for a total of 48 Gal Of Diesel! Odyssey PC-1750 Battery in trunk, 27"x8.5"/R14 Maxxis BigHorn Mud Terrains, In June '14 issue of Off Road Mag
AX15 Jeep Trans swap in progress....
Captain America
01-09-2012, 01:52 AM #41Looks Fantastic!
1982 300D Turbo ... 3,6xxlbs, No fan, No AC, Hood Stack, No ALDA, No rear bumper and stuffed front, A/W Intercooled, Injectors by Greezer and HUGE Pre-Chambers with help from OM616 & Simpler=Better, Fuel Cranked up, 60 Trim Compressor wheel, EGT, EMP, Boost 50" Rigid Radius bar on roof Aux tank for a total of 48 Gal Of Diesel! Odyssey PC-1750 Battery in trunk, 27"x8.5"/R14 Maxxis BigHorn Mud Terrains, In June '14 issue of Off Road Mag
AX15 Jeep Trans swap in progress....
Where did you get the extended-tip wheel?
Gone but not forgotten: two W123 sedans and two W124 wagons.
W124 1987 300TD wagon, for sale, $1000 (some assembly required).
JustPassinThru
01-09-2012, 02:48 AM #42*envy*
Where did you get the extended-tip wheel?
Gone but not forgotten: two W123 sedans and two W124 wagons.
W124 1987 300TD wagon, for sale, $1000 (some assembly required).
(01-09-2012, 04:56 AM)majesty78 I had them custom made.
If you make another one, just tell me how much and where do I send the money! I can get it balanced locally.
Gone but not forgotten: two W123 sedans and two W124 wagons.
W124 1987 300TD wagon, for sale, $1000 (some assembly required).
JustPassinThru
01-09-2012, 06:34 AM #44(01-09-2012, 04:56 AM)majesty78 I had them custom made.
If you make another one, just tell me how much and where do I send the money! I can get it balanced locally.
Gone but not forgotten: two W123 sedans and two W124 wagons.
W124 1987 300TD wagon, for sale, $1000 (some assembly required).
I have one wheel left over from 5.
Regards Alex
Mercedes Benz W210 E-Class 320CDI, lowered 2.5", 18" AMG wheels, Decat, EGR removed, Tumble flaps removed, C30 AMG injectors, 400kpa MAP, Custom GT2566XTV turbo, SW tweaked to 300+hp/750Nm
So you have possibility to machine housing and backplate to match the wheel?
I have one wheel left over from 5.
Regards Alex
Mercedes Benz W210 E-Class 320CDI, lowered 2.5", 18" AMG wheels, Decat, EGR removed, Tumble flaps removed, C30 AMG injectors, 400kpa MAP, Custom GT2566XTV turbo, SW tweaked to 300+hp/750Nm
Gone but not forgotten: two W123 sedans and two W124 wagons.
W124 1987 300TD wagon, for sale, $1000 (some assembly required).
JustPassinThru
01-09-2012, 12:52 PM #46Yes. I have sent you a PM.
Gone but not forgotten: two W123 sedans and two W124 wagons.
W124 1987 300TD wagon, for sale, $1000 (some assembly required).
![[Image: foto0681g5o51.jpg]](http://www.abload.de/image.php?img=foto0681g5o51.jpg)
![[Image: foto0684wlpmj.jpg]](http://www.abload.de/image.php?img=foto0684wlpmj.jpg)
![[Image: foto0686iwool.jpg]](http://www.abload.de/image.php?img=foto0686iwool.jpg)
![[Image: foto0687w8pw7.jpg]](http://www.abload.de/image.php?img=foto0687w8pw7.jpg)
![[Image: foto069260oxc.jpg]](http://www.abload.de/image.php?img=foto069260oxc.jpg)
I think I have to take it to bed with me tonight and give it a hug ^^
Mercedes Benz W210 E-Class 320CDI, lowered 2.5", 18" AMG wheels, Decat, EGR removed, Tumble flaps removed, C30 AMG injectors, 400kpa MAP, Custom GT2566XTV turbo, SW tweaked to 300+hp/750Nm
Done :-))))
I think I have to take it to bed with me tonight and give it a hug ^^
Mercedes Benz W210 E-Class 320CDI, lowered 2.5", 18" AMG wheels, Decat, EGR removed, Tumble flaps removed, C30 AMG injectors, 400kpa MAP, Custom GT2566XTV turbo, SW tweaked to 300+hp/750Nm
1982 300D Turbo ... 3,6xxlbs, No fan, No AC, Hood Stack, No ALDA, No rear bumper and stuffed front, A/W Intercooled, Injectors by Greezer and HUGE Pre-Chambers with help from OM616 & Simpler=Better, Fuel Cranked up, 60 Trim Compressor wheel, EGT, EMP, Boost 50" Rigid Radius bar on roof Aux tank for a total of 48 Gal Of Diesel! Odyssey PC-1750 Battery in trunk, 27"x8.5"/R14 Maxxis BigHorn Mud Terrains, In June '14 issue of Off Road Mag
AX15 Jeep Trans swap in progress....
Captain America
01-11-2012, 12:51 AM #48Looks sooo much bigger now! I would sleep with it too!
1982 300D Turbo ... 3,6xxlbs, No fan, No AC, Hood Stack, No ALDA, No rear bumper and stuffed front, A/W Intercooled, Injectors by Greezer and HUGE Pre-Chambers with help from OM616 & Simpler=Better, Fuel Cranked up, 60 Trim Compressor wheel, EGT, EMP, Boost 50" Rigid Radius bar on roof Aux tank for a total of 48 Gal Of Diesel! Odyssey PC-1750 Battery in trunk, 27"x8.5"/R14 Maxxis BigHorn Mud Terrains, In June '14 issue of Off Road Mag
AX15 Jeep Trans swap in progress....
Would ir be beneficial/feasible to tap the head of the compressor bolt & thread/locktite a cone to direct the airflow?
Ed
yankneck696
01-11-2012, 06:18 AM #49My dumb@$$ question of the day:
Would ir be beneficial/feasible to tap the head of the compressor bolt & thread/locktite a cone to direct the airflow?
Ed
1982 300D Turbo ... 3,6xxlbs, No fan, No AC, Hood Stack, No ALDA, No rear bumper and stuffed front, A/W Intercooled, Injectors by Greezer and HUGE Pre-Chambers with help from OM616 & Simpler=Better, Fuel Cranked up, 60 Trim Compressor wheel, EGT, EMP, Boost 50" Rigid Radius bar on roof Aux tank for a total of 48 Gal Of Diesel! Odyssey PC-1750 Battery in trunk, 27"x8.5"/R14 Maxxis BigHorn Mud Terrains, In June '14 issue of Off Road Mag
AX15 Jeep Trans swap in progress....
Captain America
01-12-2012, 12:51 AM #50Cool idea, like the jet engines on airplanes, dunno if there would be any benefit here though
1982 300D Turbo ... 3,6xxlbs, No fan, No AC, Hood Stack, No ALDA, No rear bumper and stuffed front, A/W Intercooled, Injectors by Greezer and HUGE Pre-Chambers with help from OM616 & Simpler=Better, Fuel Cranked up, 60 Trim Compressor wheel, EGT, EMP, Boost 50" Rigid Radius bar on roof Aux tank for a total of 48 Gal Of Diesel! Odyssey PC-1750 Battery in trunk, 27"x8.5"/R14 Maxxis BigHorn Mud Terrains, In June '14 issue of Off Road Mag
AX15 Jeep Trans swap in progress....
1 Guest(s)
1 Guest(s)
